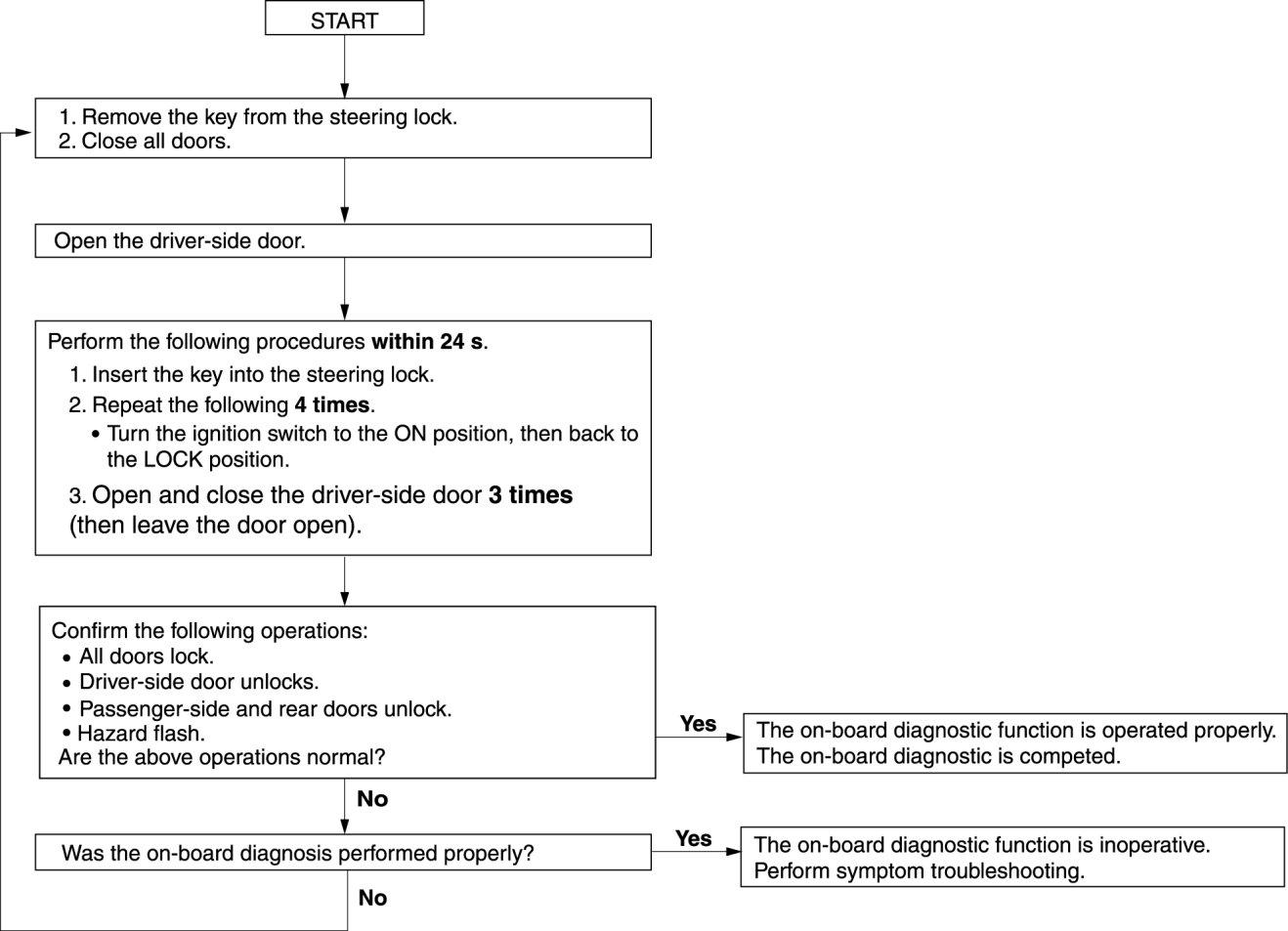

Flow Chart
KEYLESS ENTRY SYSTEM ON-BOARD DIAGNOSIS [KEYLESS ENTRY SYSTEM]
NOTE:
-
"All doors" includes the liftgate.
