Engine Disassembly/Assembly

ENGINE DISASSEMBLY/ASSEMBLY [L3 WITH TC]

1. Remove the engine from the transaxle. Manual Transaxle Removal/Installation

2. Remove the intake-air system. Service and Repair

3. Remove the exhaust system. Service and Repair

4. Remove the generator. Removal and Replacement

5. Remove the EGR valve. Service and Repair

6. Remove the ignition coils. Service and Repair

7. Remove the high pressure fuel pump and high pressure fuel pump cover. High Pressure Fuel Pump Removal/Installation

8. Remove the fuel injectors. Service and Repair

9. Remove the crankshaft position (CKP) sensor. Service and Repair

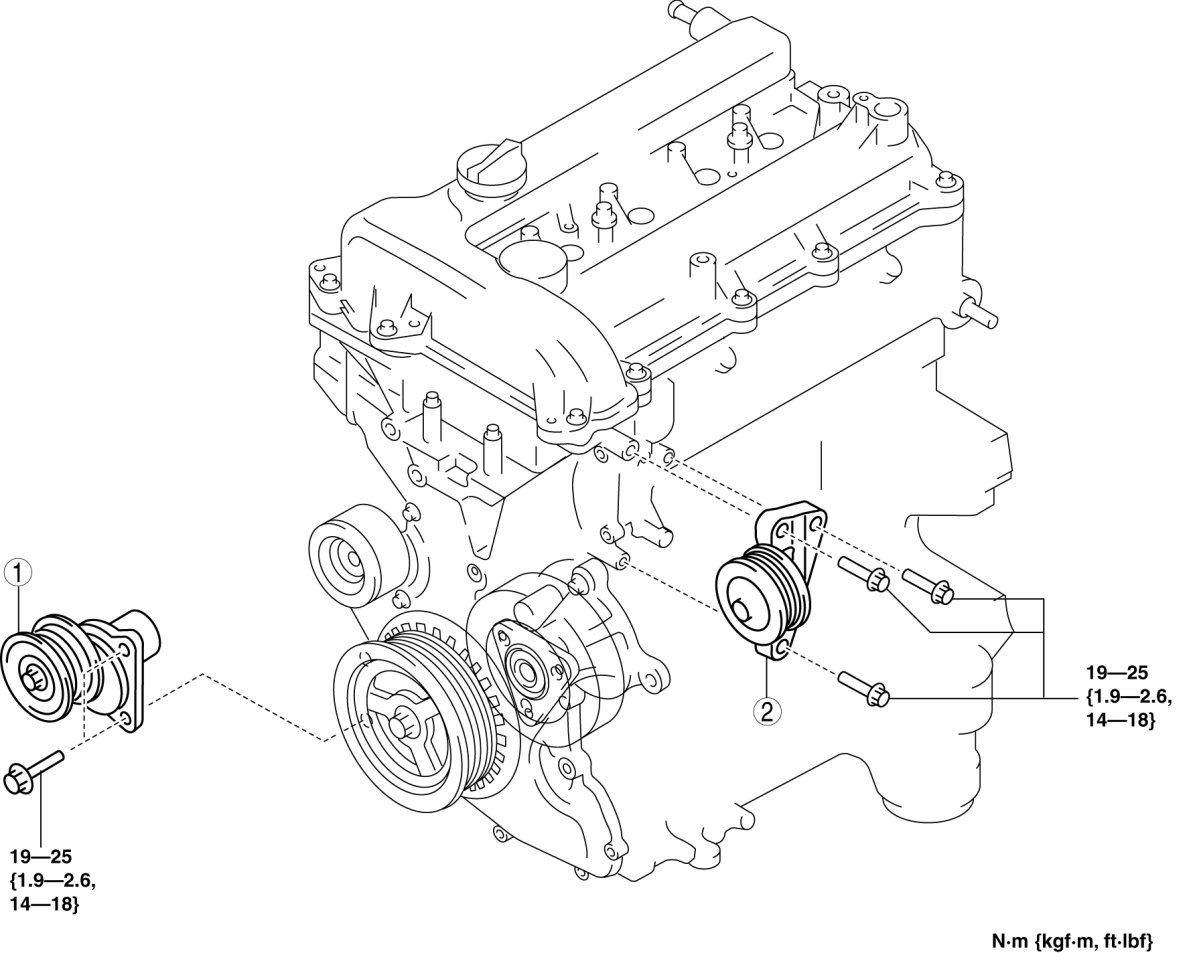

10. Disassemble in the order indicated in the table.

11. Assemble in the reverse order of disassembly.
