Power Transistor HVAC: Service and Repair

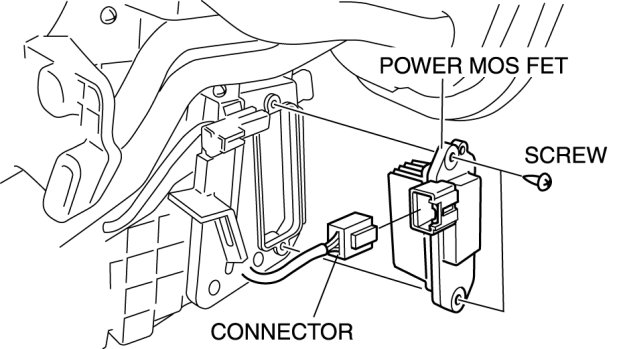

POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover Dashboard Under Cover Removal/Installation

3. Disconnect the connector.






4. Remove the screw.

5. Remove the power MOS FET.

6. Install in the reverse order of removal.
