Electronic Throttle Actuator: Testing and Inspection

THROTTLE BODY INSPECTION [L3 WITH TC]

Resistance Inspection

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Disconnect the throttle body connector.

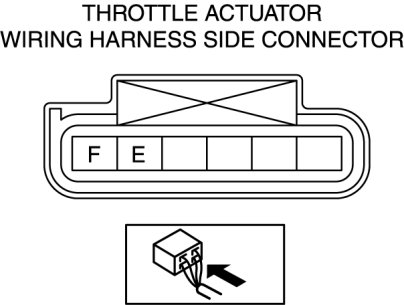

4. Measure the resistance between the throttle body terminals E and F.






Throttle body resistance
- 0.3-100 ohms [20 °C {68 °F}]

- If not as specified, replace the throttle body. Service and Repair
