Variable Induction Position Sensor: Testing and Inspection

VARIABLE SWIRL SHUTTER VALVE SWITCH INSPECTION [L3 WITH TC]

Voltage Inspection

1. Switch the ignition to ON (Engine off).

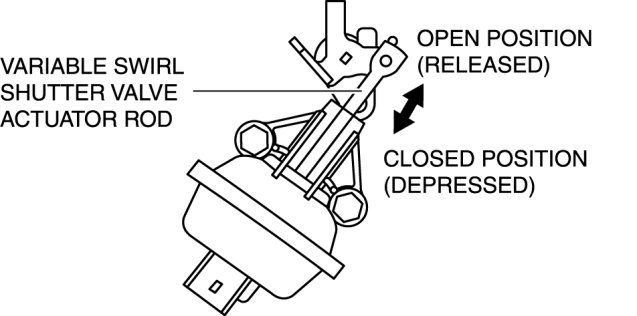

2. Verify that the PCM terminal 2AE voltage is as shown in the following table when the variable swirl shutter valve actuator rod is depressed and released by hand.











- If not as specified, replace the intake manifold. Service and Repair

Variable swirl shutter valve switch output voltage
