Circuit Open/Short Inspection: Notes

Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
Inspect the following wiring harnesses for open or short (continuity check.)

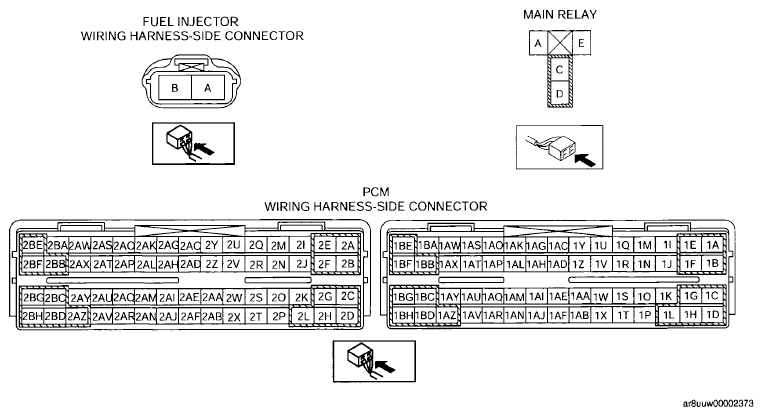

Fig 1: Identifying PCM, Fuel Injector And Main Relay Connector Terminals

Courtesy of MAZDA MOTORS CORP.
