Fuel System Diagram

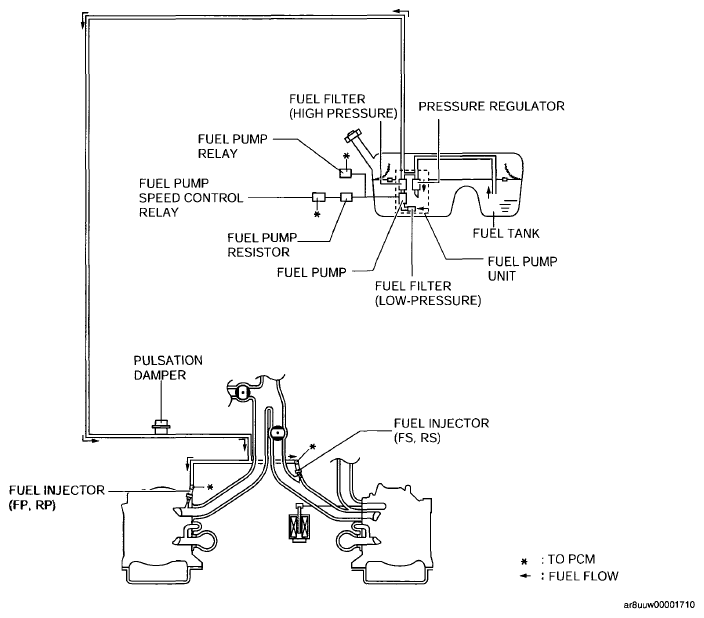

Fig 1: Fuel System - Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
