Trunk / Liftgate Lock Cylinder: Service and Repair

TRUNK KEY CYLINDER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the trunk end trim. Trunk End Trim Removal/Installation

3. Detach the rod.

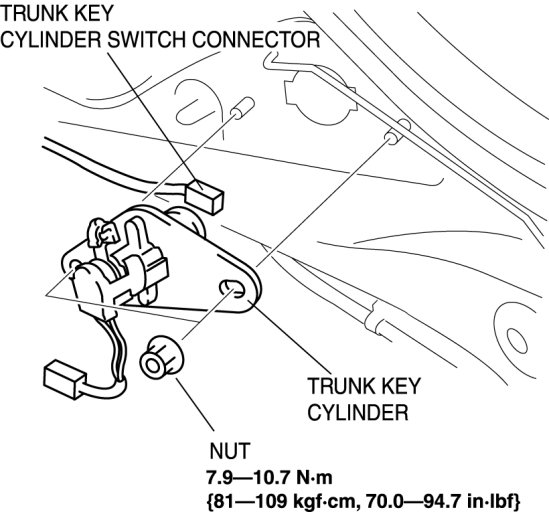

4. Remove the nuts, then remove the trunk key cylinder.






5. Install in the reverse order of removal.
