Auto Light Control System

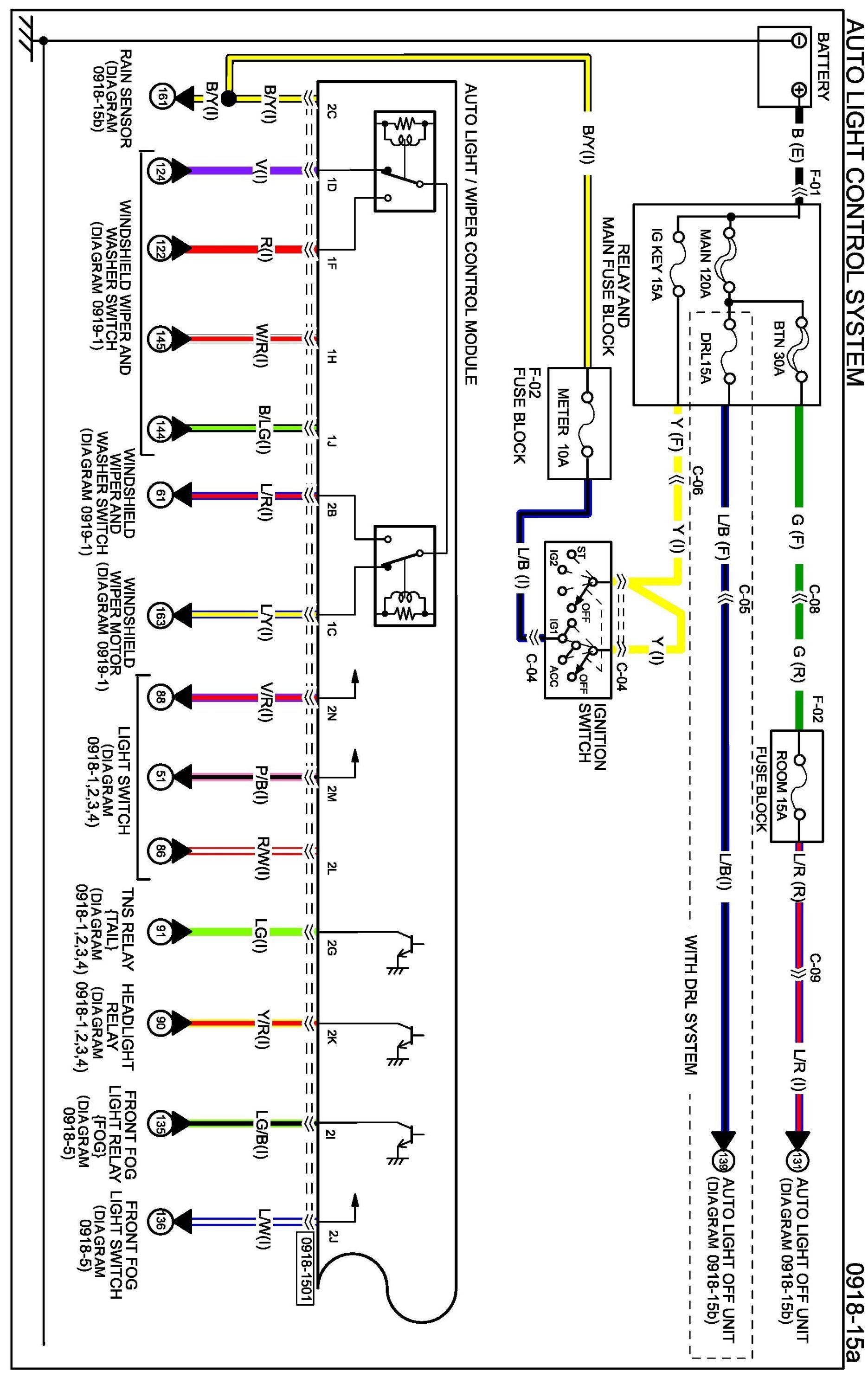

Diagram 0918-15a:

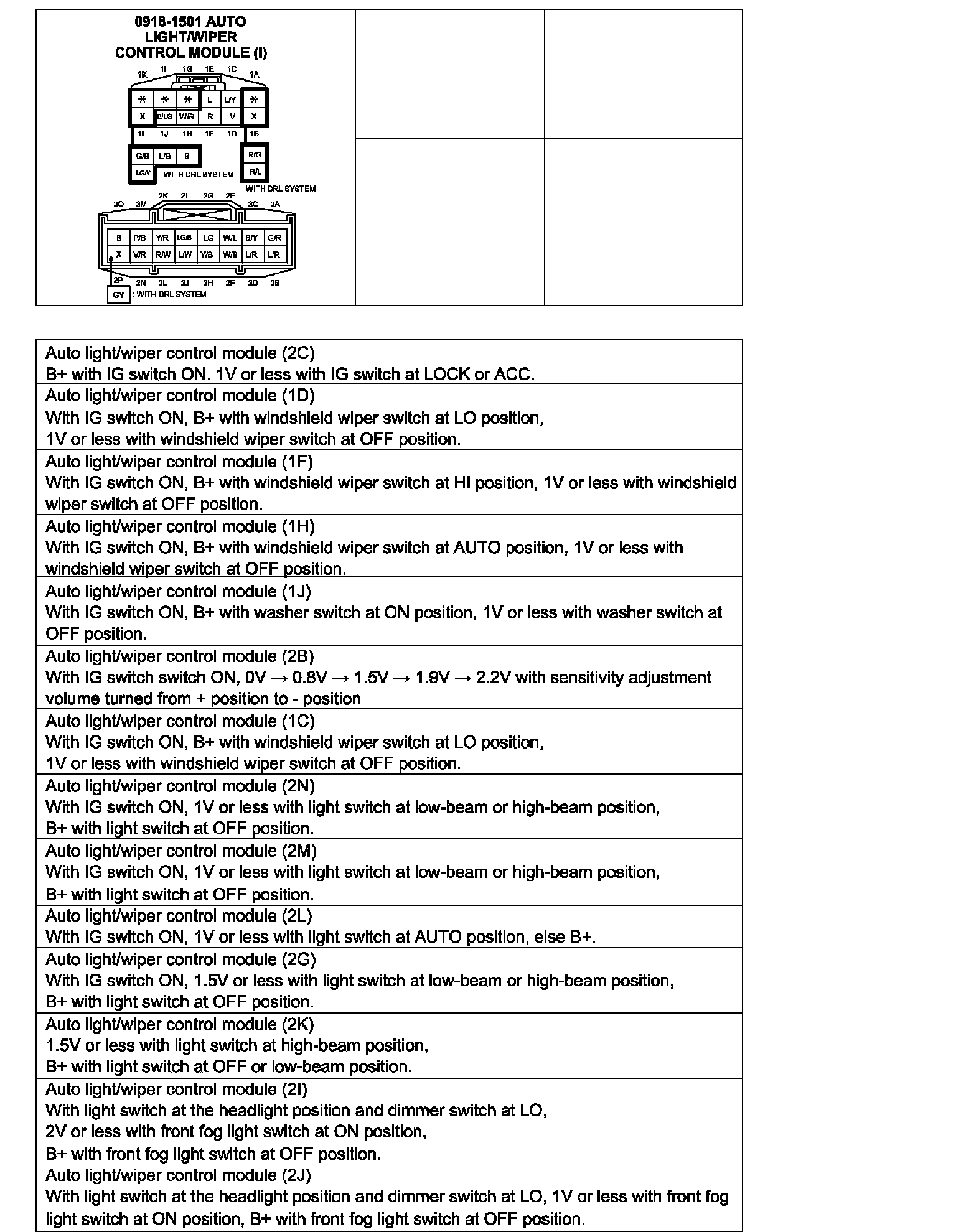

Connectors 0918-15a:

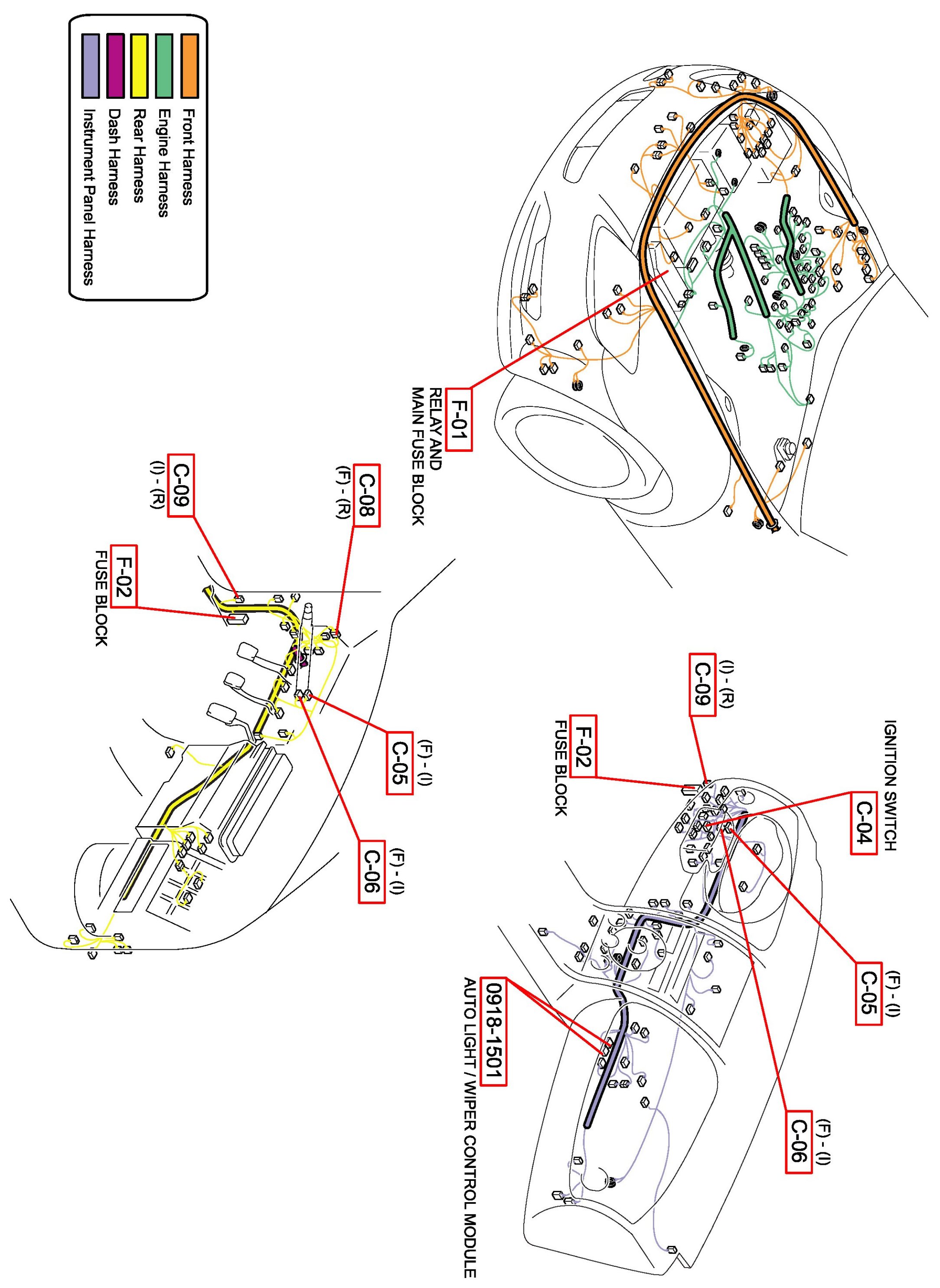

Routing View 0918-15a:

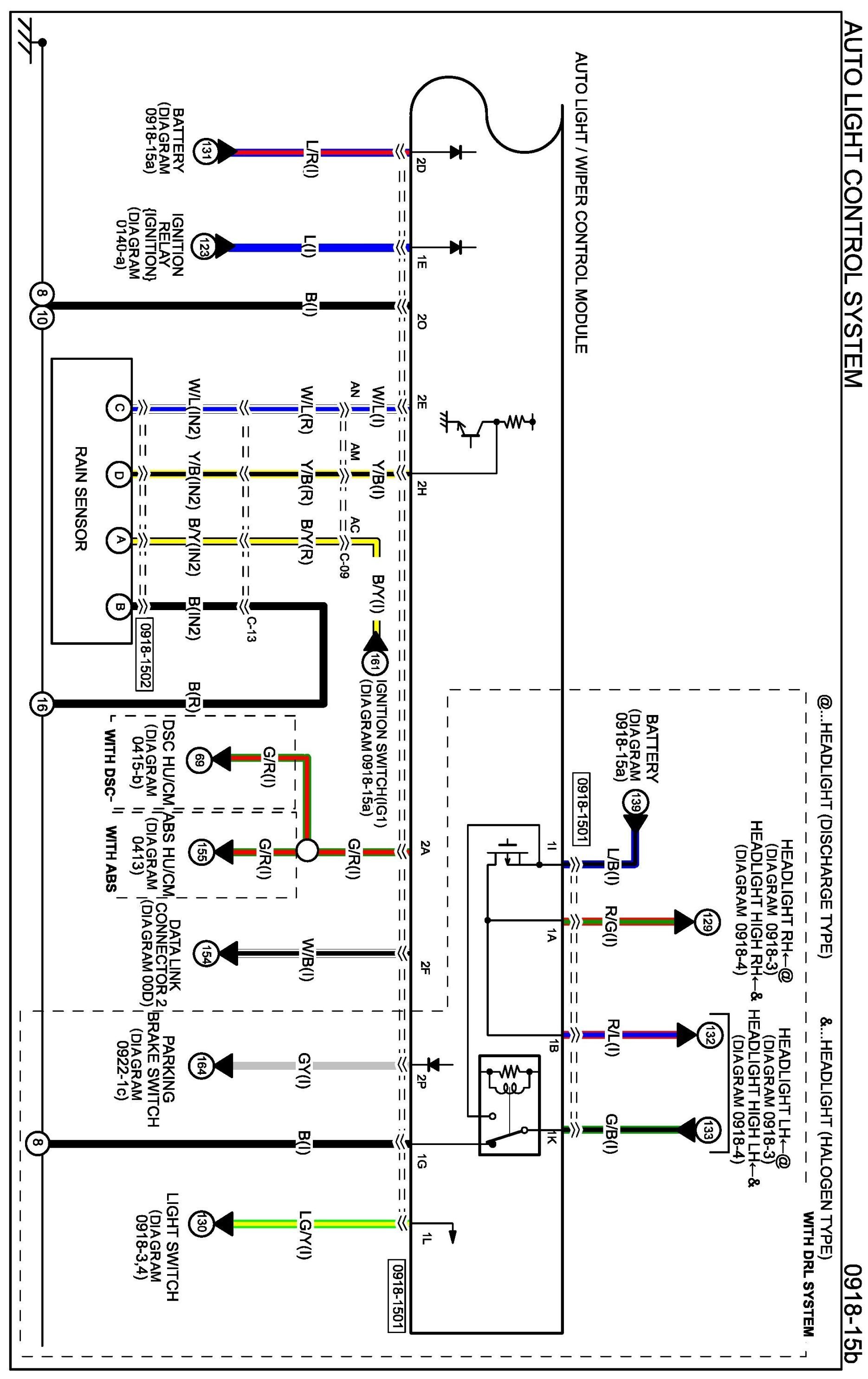

Diagram 0918-15b:

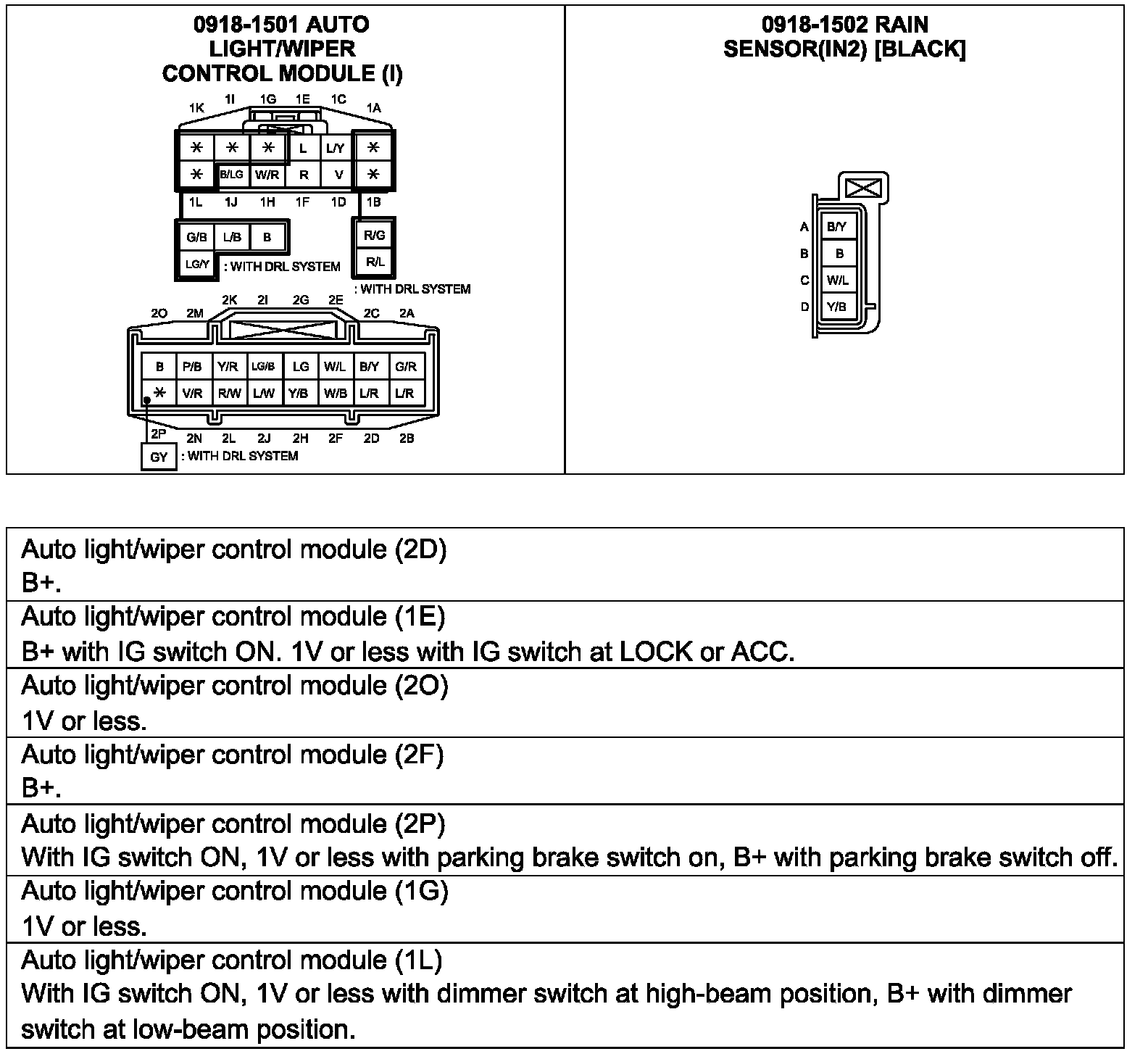

Connectors 0918-15b:

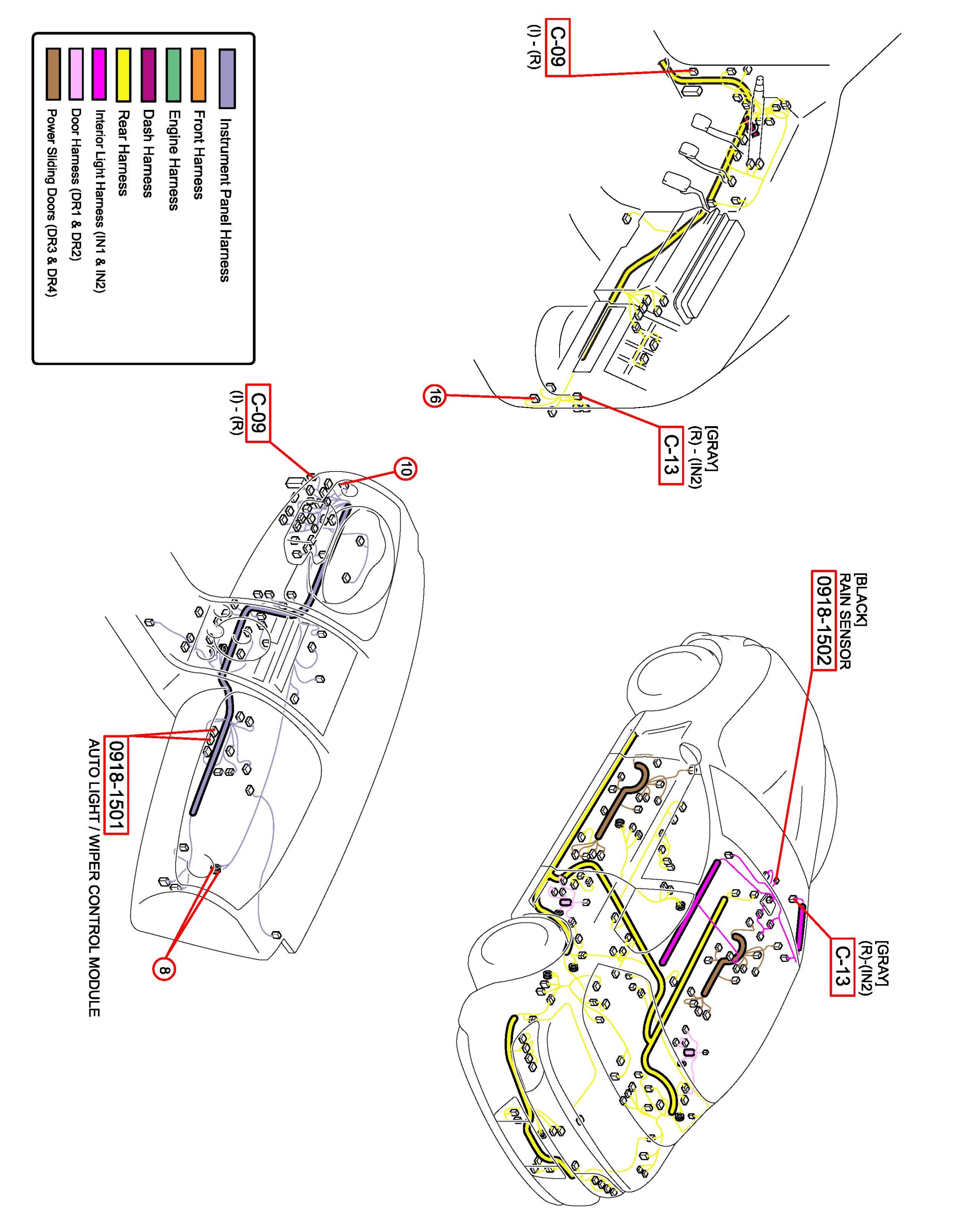

Routing View 0918-15b:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
