Blower Motor Switch: Testing and Inspection




FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER]

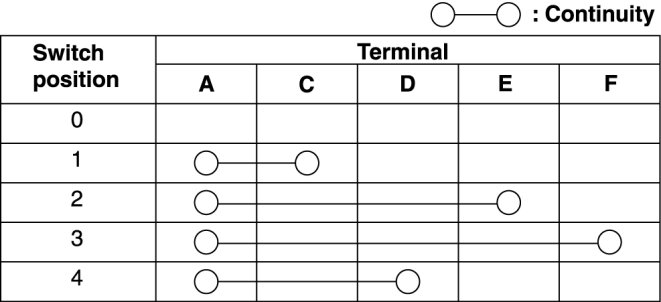

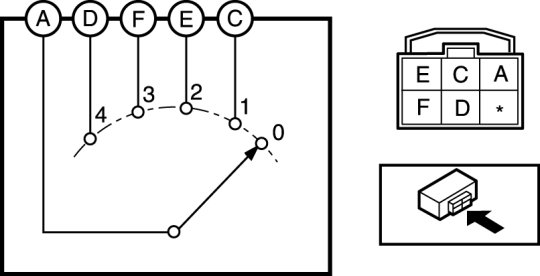

1. Inspect for continuity between the fan switch terminals using a tester.






- If there is any malfunction, replace the fan switch.
