Engine Temperature Sensor: Service and Repair

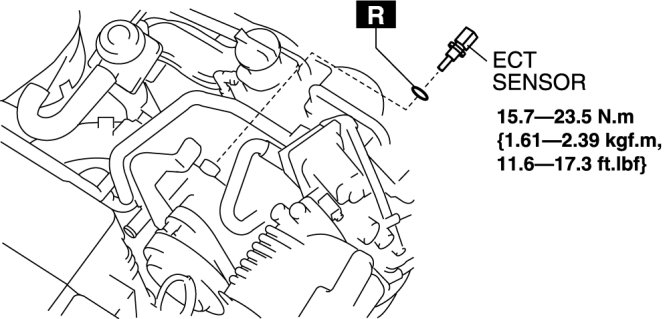

ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [13B-MSP]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the generator. Removal and Replacement

4. Drain the engine coolant. Service and Repair

5. Disconnect the ECT sensor connector.

6. Remove the ECT sensor.

7. Install in the reverse order of removal.
