Intake Manifold

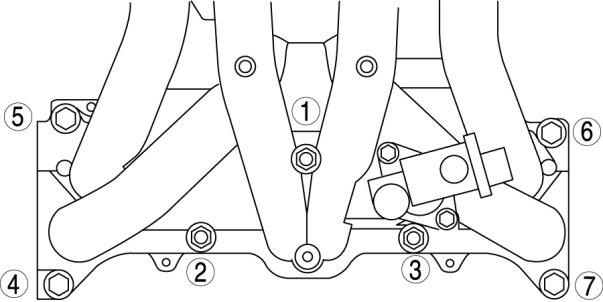

Tighten the bolts in the order shown in the figure

Retighten the No.1 bolt after tighten the all bolts.

Tightening torque 18.6-25.5 Nm {1.9-2.6 kgf-m, 14-18 ft-lbf}
