Card Key ID Code Registration




CARD KEY ID CODE REGISTRATION [WITH ADVANCED KEYLESS ENTRY AND START SYSTEM]

CAUTION:
- Do not place the following devices in the vehicle while programming, otherwise programming cannot be performed.

- M-MDS
- Personal computer
- Device that can send/receive radio waves

- Verify that the other transmitter is not being operated around the servicing area during card key programming.

NOTE:
- Use the M-MDS and start programming if the condition corresponds to the following:

- One or No Programmed Card Keys
- Keyless control module is replaced

- If six card keys are already programmed, the programming mode does not activate. If programming is needed, use the M-MDS to erase the unnecessary card key programming.

Using M-MDS

1. Fully lower the driver-side door glass.

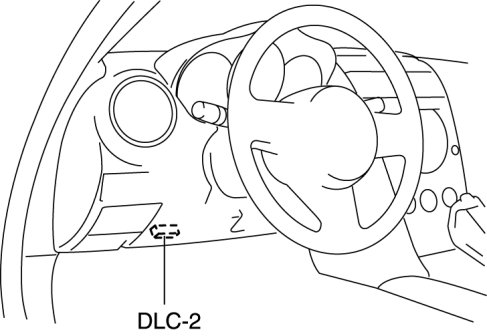

2. Connect the M-MDS to DLC-2.






3. Set the M-MDS outside the vehicle with its cable passing through the door glass opening.

CAUTION:
- Cover the vehicle body with a clean rag so as not to damage the vehicle body with the cable.

4. After the vehicle is identified, select the following items from the initial screen of the M-MDS.

- When using the IDS (laptop PC)

- Select "Body".
- Select "Security".
- Select "PATS Functions".

- When using the PDS (Pocket PC)

- Select "All Tests and Calibrations".
- Select "PATS Functions".

5. Then, select an item from the screen menu.

- Select the "Program Additional card key"

6. Perform the security access according to the directions on the M-MDS screen.
