Pinpoint Test 11: The Autolock Does Not Operate Correctly

PINPOINT TEST 11: THE AUTOLOCK DOES NOT OPERATE CORRECTLY

Normal Operation

The smart junction box (SJB) energizes the lock relay based on input from the ajar switches, the ignition switch, the transmission range (TR) sensor and the vehicle speed signal (VSS). The SJB locks the doors when the following conditions are met:

- All the doors are closed
- The ignition switch is in the ON position
- The vehicle is shifted into any gear putting the vehicle in motion
- The vehicle attains a speed greater than 20 km/h (12 mph)

Possible Causes
- Wiring, terminals or connectors
- Programming
- Door ajar switches
- SJB

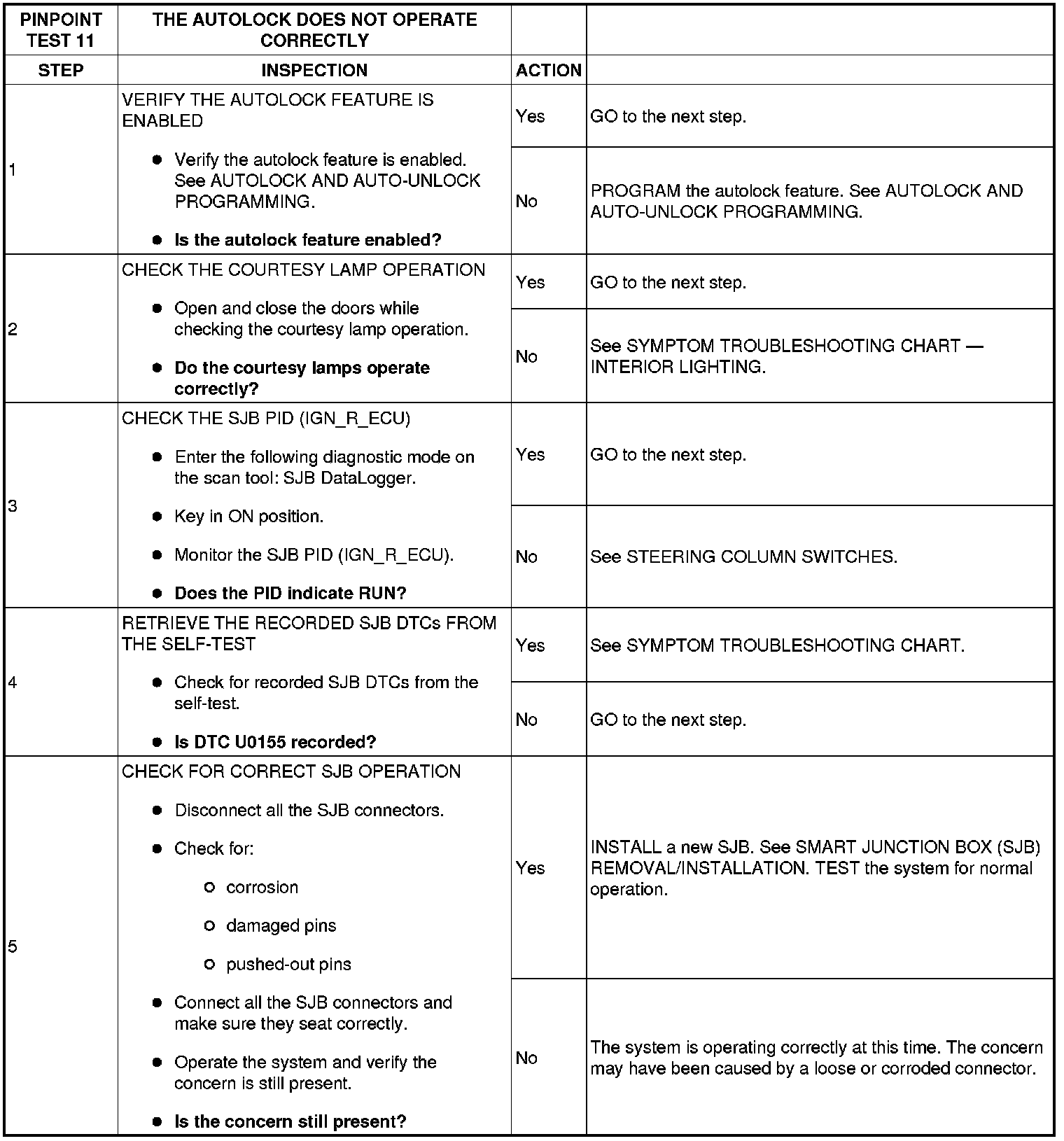

Diagnostic Procedure
