Traction Control Switch: Service and Repair

STABILITY/TRACTION CONTROL SWITCH REMOVAL/INSTALLATION









1. Remove the lower instrument cluster center finish panel. See - Instrument Panel Center Finish Panel - Lower Removal/Installation.

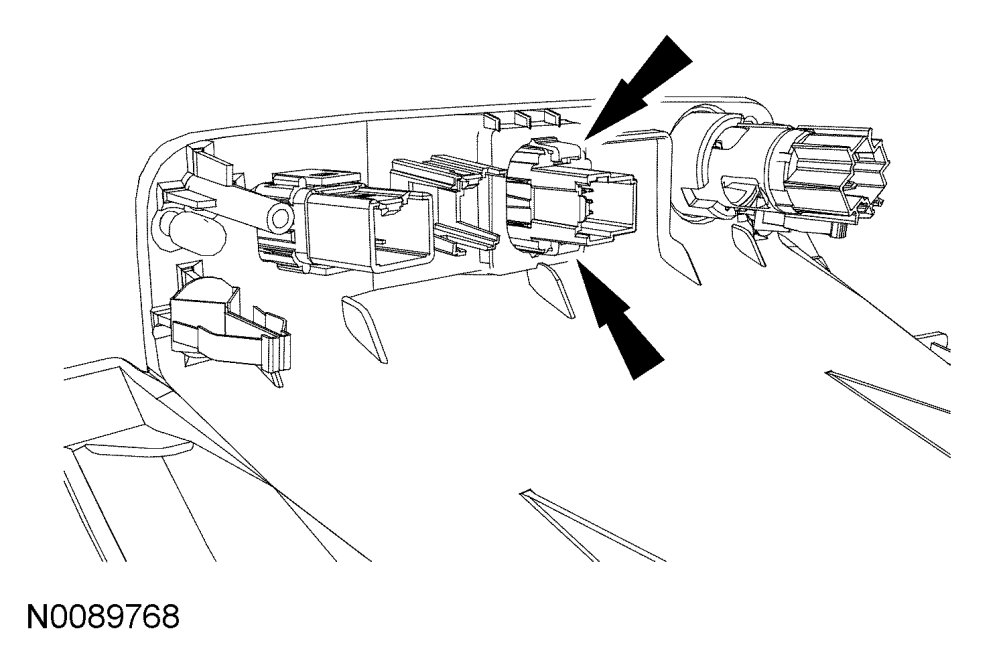

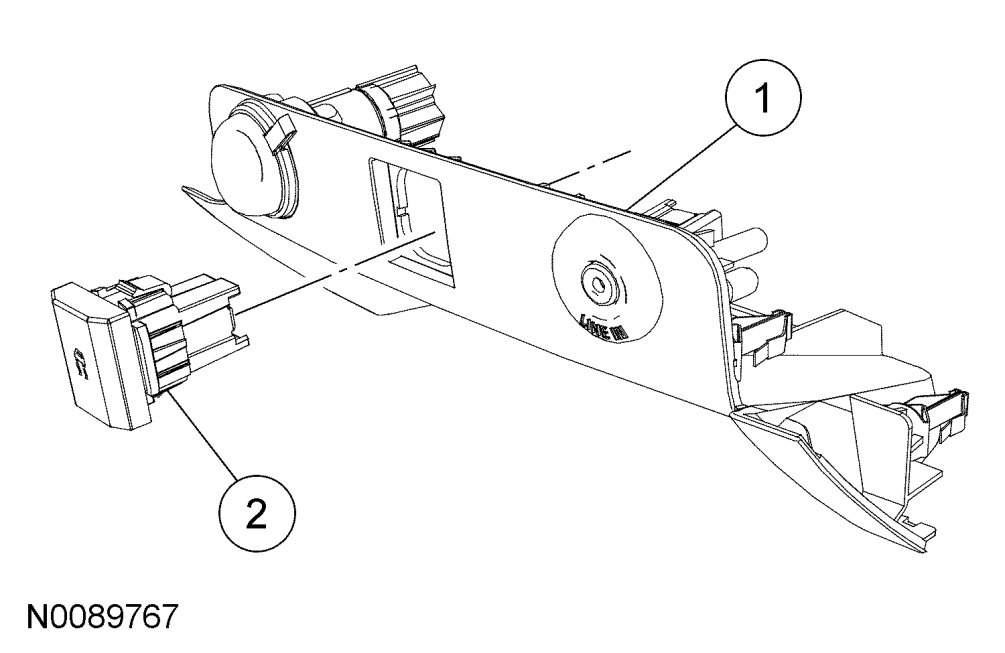

2. Depress the 2 tabs and remove the stability/traction control switch assembly.

3. To install, reverse the removal procedure.
