Pinpoint Test 3: Transmission Control Switch (TCS) Does Not Operate Correctly

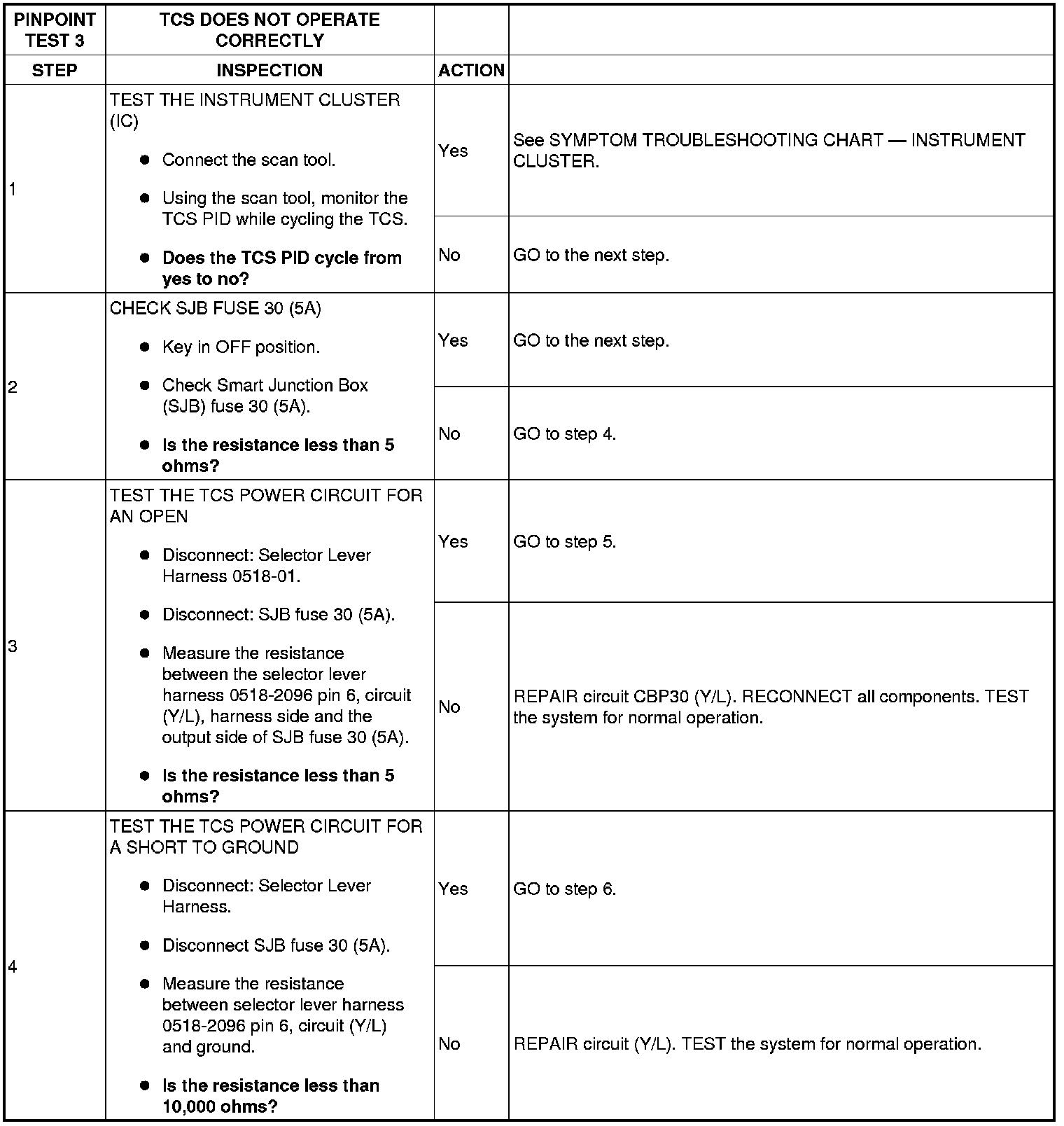

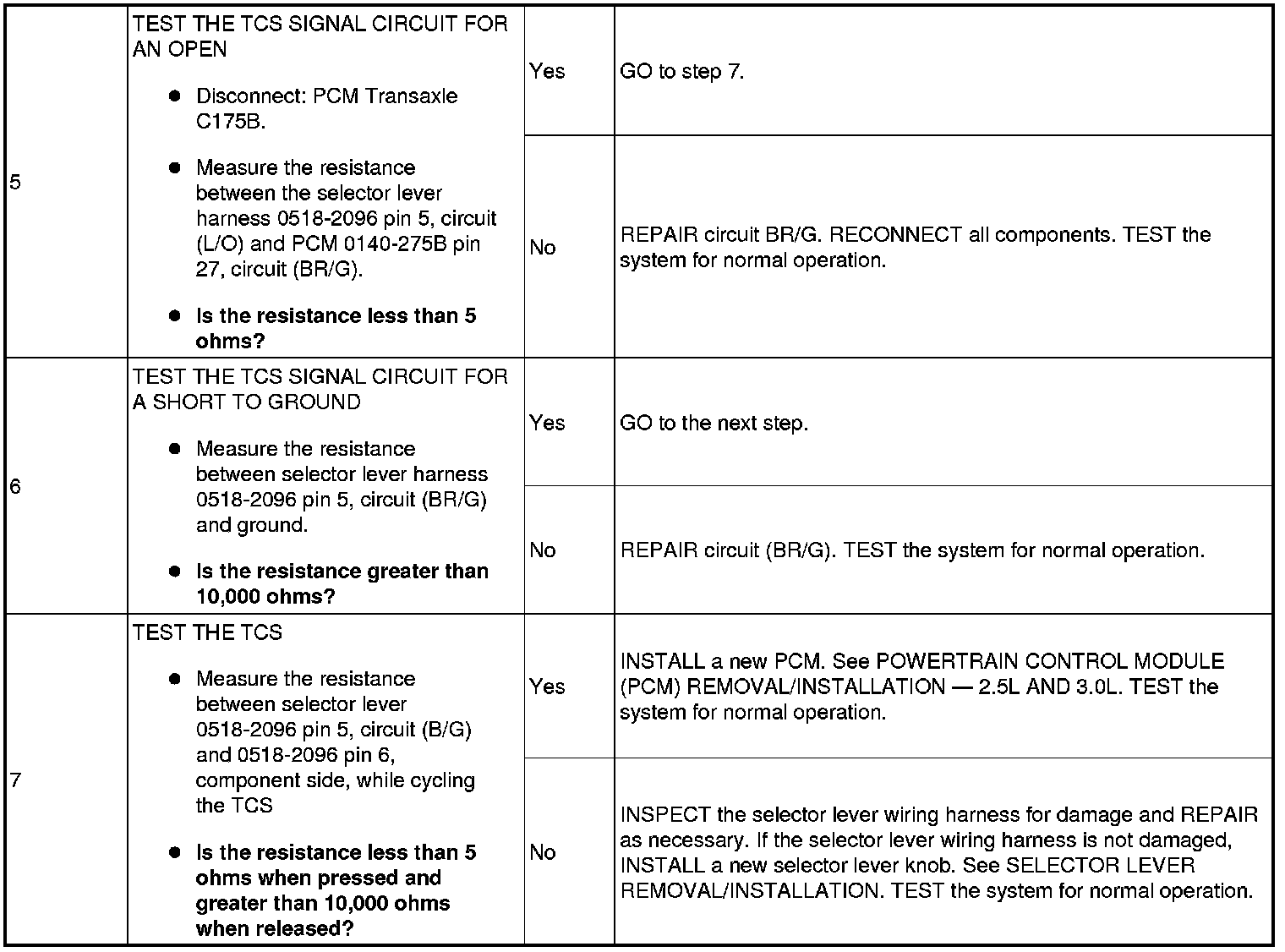

PINPOINT TEST 3: TRANSMISSION CONTROL SWITCH (TCS) DOES NOT OPERATE CORRECTLY
