Engine Lubrication




ENGINE LUBRICATION COMPONENTS EXPLODED VIEW - 3.0L

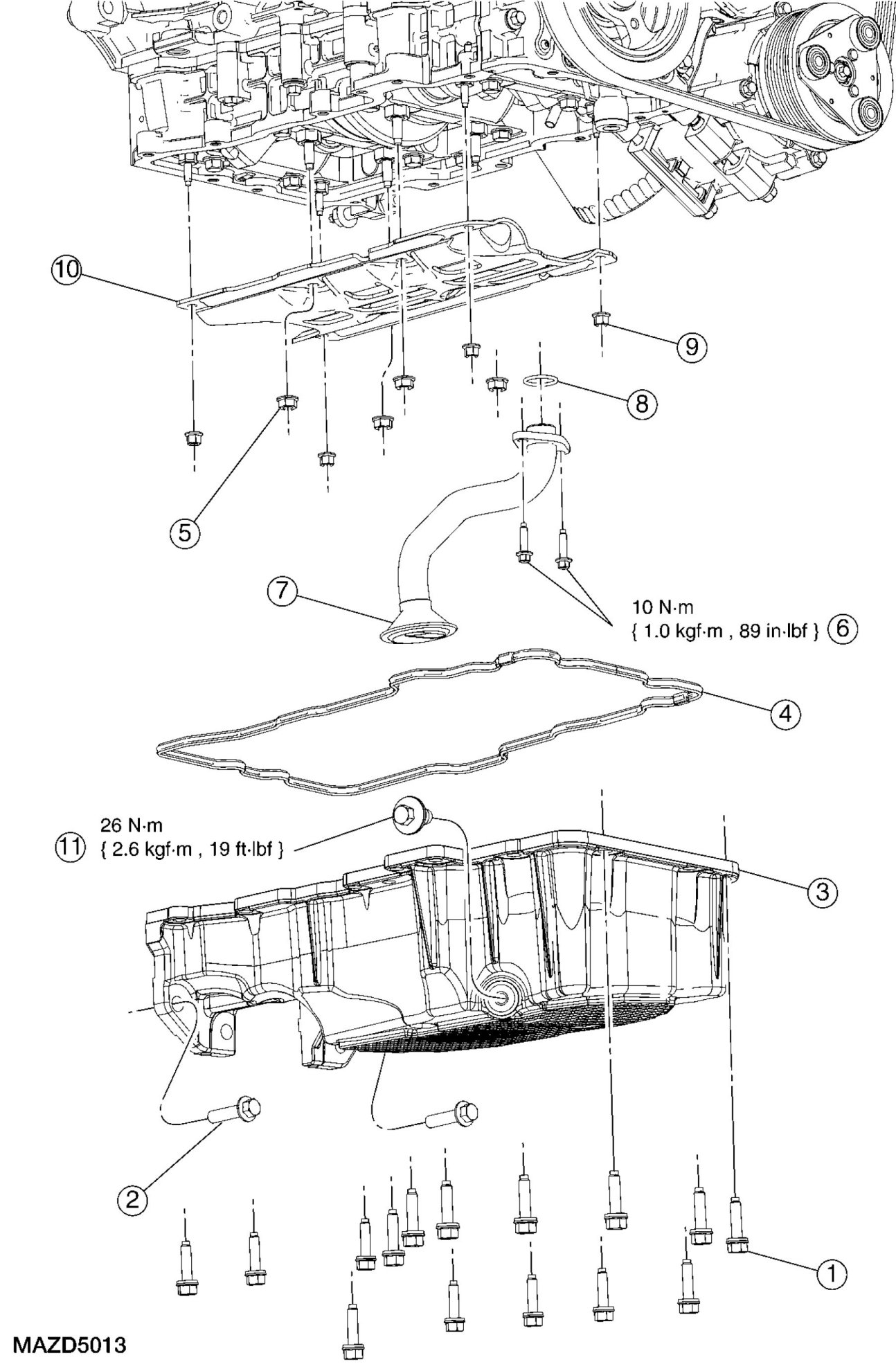

Oil Pan, Oil Pan Baffle and Oil Pump Screen and Pickup Tube

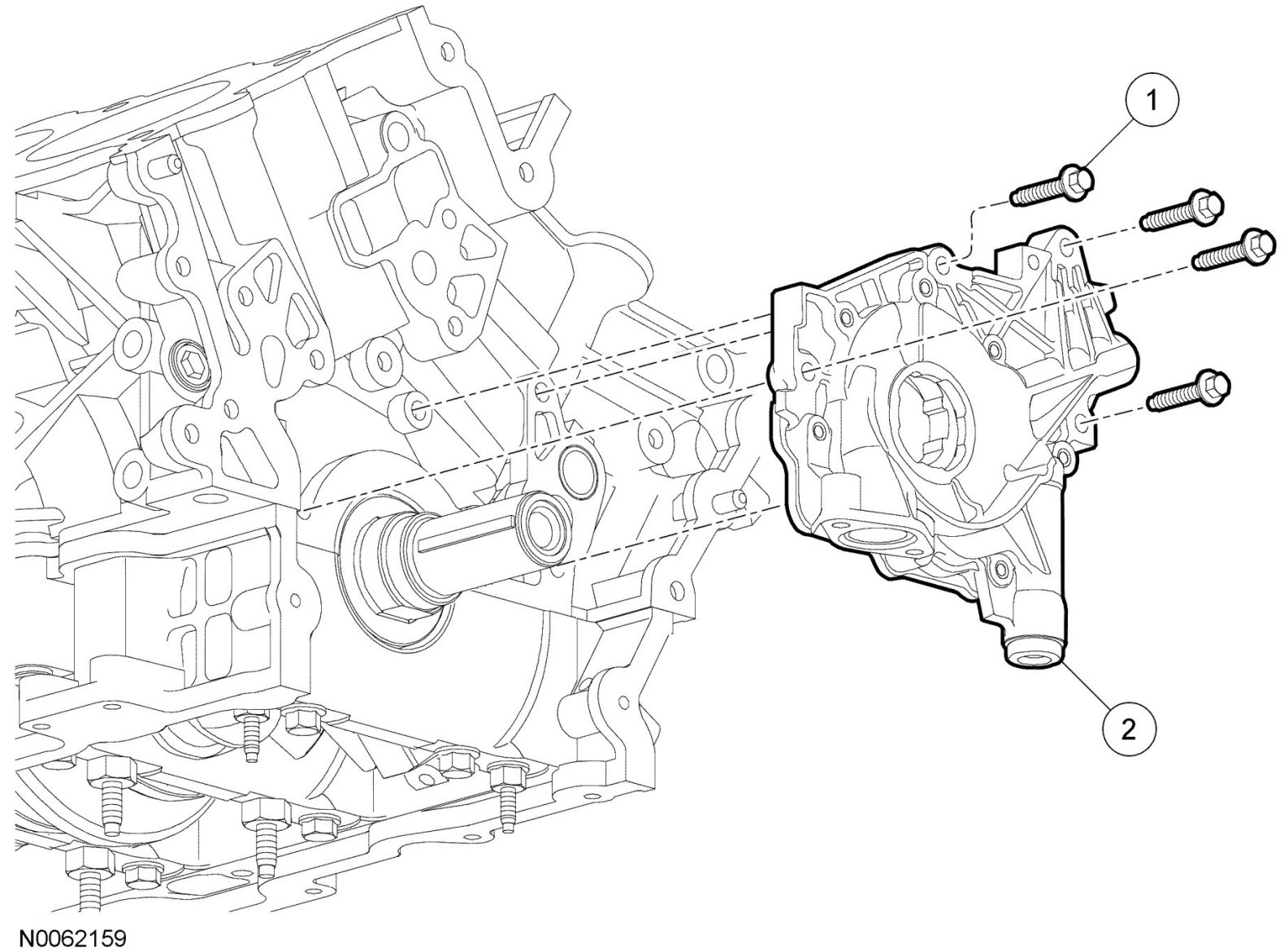

Oil Pump










1. For additional information, see the procedures.
