Variable Valve Timing Solenoid: Service and Repair

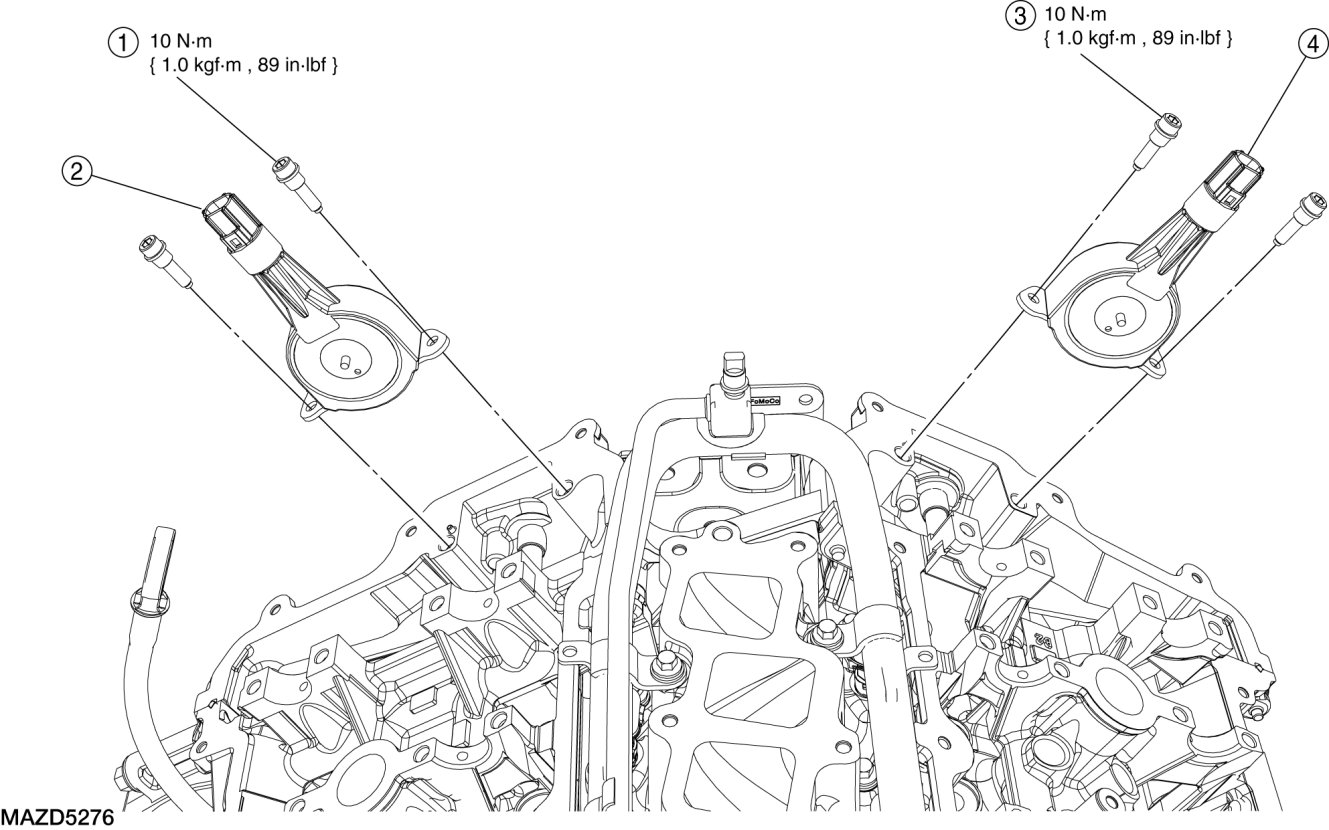

VARIABLE CAMSHAFT TIMING (VCT) OIL CONTROL SOLENOID - 3.0L REMOVAL/INSTALLATION









1. Remove the LH or RH valve cover. See - Valve Cover Removal/Installation - LH.

2. Remove 2 bolts and the Variable Camshaft Timing (VCT) oil control solenoid.

- To install, tighten to 10 Nm {1.0 kgf-m, 89 in-lbf}.

3. To install, reverse the removal procedure.
