Hood Latch And Components - Exploded View

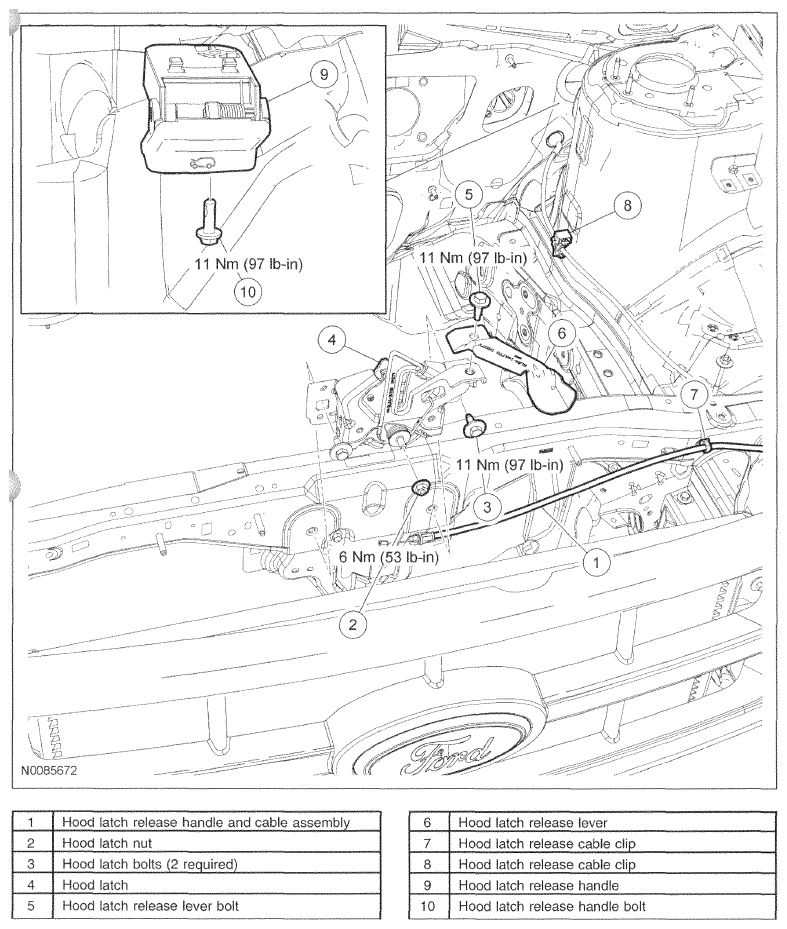

Fig 1: Exploded View Of Hood Latch And Components With Torque Specifications
G07436647Courtesy of MAZDA MOTORS CORP.
  1. For additional information, see the appropriate procedures in this service information.
