Steering Linkage - Exploded View

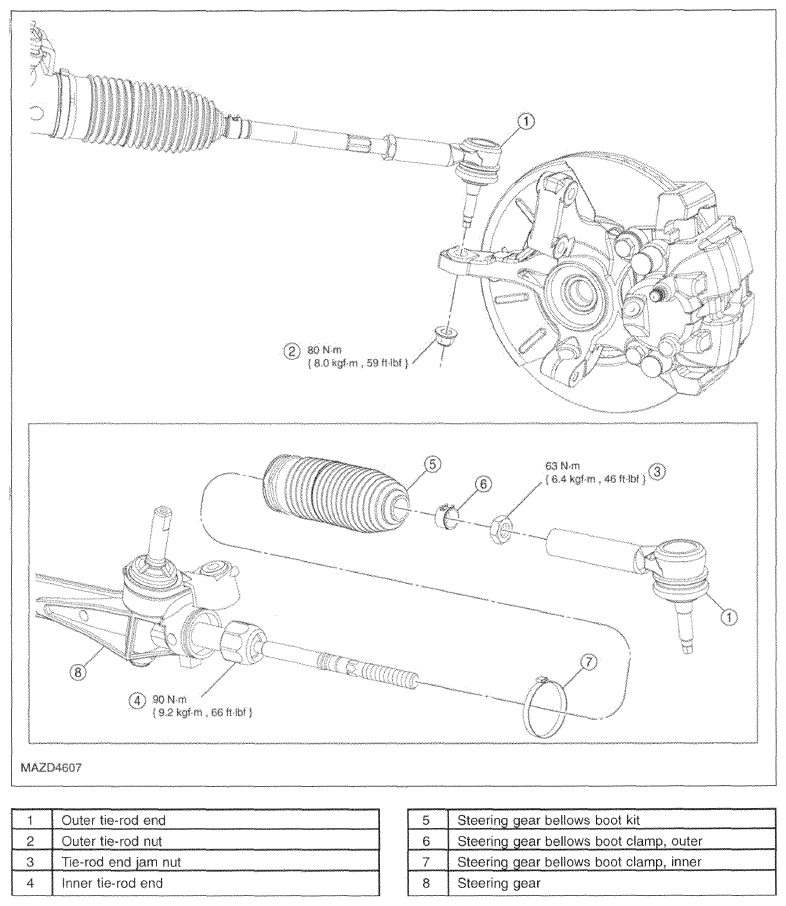

Fig 1: Exploded View Of Steering Linkage Components With Torque Specifications
G07435798Courtesy of MAZDA MOTORS CORP.
  1. For additional information, see the appropriate procedures in this service information.
