Key Reminder Switch: Service and Repair

KEY REMINDER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

3. Remove the coil antenna. Service and Repair

4. Insert the key into the key cylinder and turn the ignition switch to the ACC position.

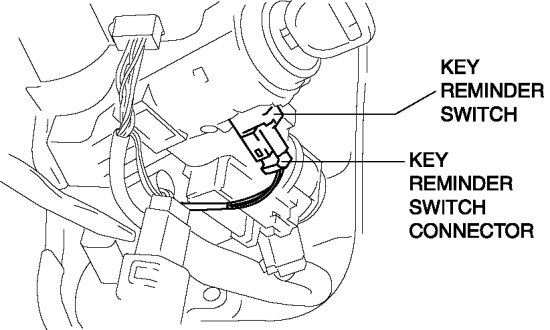

5. Disconnect the key reminder switch connector.

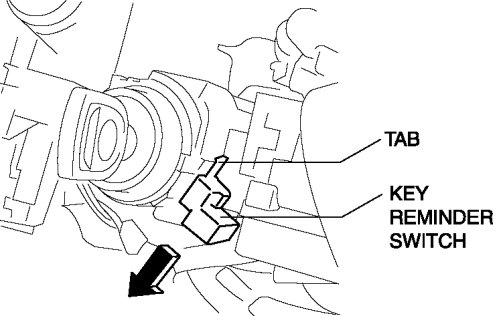

6. Detach the key reminder switch tab.






7. Install the key reminder switch in the direction of the arrow.

8. Install in the reverse order of removal.
