Ignition Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

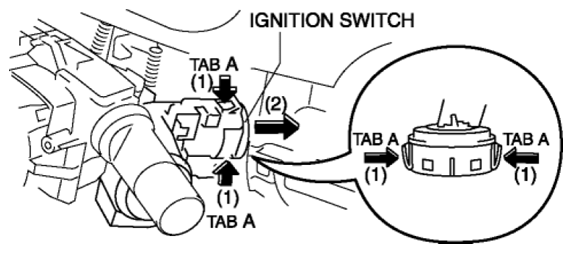

  3. Press tabs A in the direction of the arrow (1) shown in the figure and pull the ignition switch in the direction of the arrow (2).
    Fig 1: Identifying Ignition Switch Pulling Direction
    G08096434

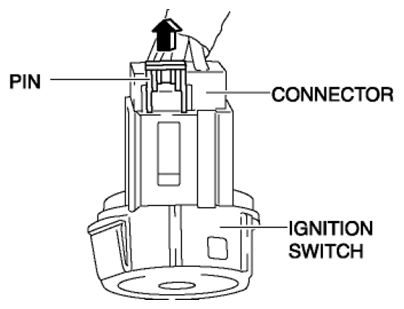

  4. Pull the pin in the direction of the arrow shown in the figure and release the lock.
    Fig 2: Identifying Pin Pulling Direction
    G08096435

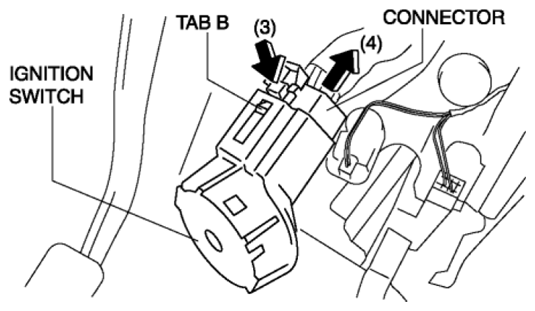

  5. Pull the connector in the direction of the arrow (4) shown in the figure and remove it while pressing tab B in the direction of the arrow (3).
    Fig 3: Identifying Connector Pulling Direction
    G08096436
  6. Remove the ignition switch.
  7. Install in the reverse order of removal.
