Key Reminder Switch Inspection

Disconnect the negative battery cable.
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Disconnect the key reminder switch connector.

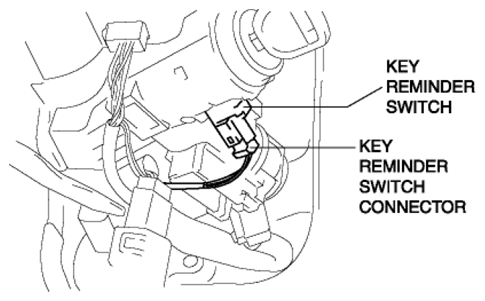

Fig 1: Identifying Key Reminder Switch And Connector
Verify that the continuity between the key reminder switch terminals is as indicated in the table.

Fig 2: Identifying Key Reminder Switch Terminals
- If not as indicated in the table, replace the key reminder switch.

  Fig 3: Key Reminder Switch Continuity Chart
