Key Reminder Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the coil antenna. (See COIL ANTENNA REMOVAL/INSTALLATION .)
  4. Insert the key into the key cylinder and turn the ignition switch to the ACC position.
  5. Disconnect the key reminder switch connector.

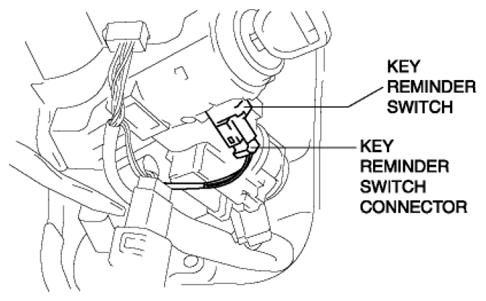

    Fig 1: Identifying Key Reminder Switch And Connector
    G08096439
  6. Detach the key reminder switch tab.

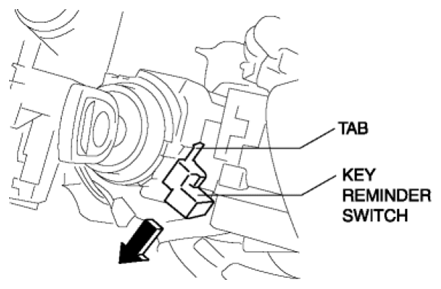

    Fig 2: Identifying Key Reminder Switch And Tab
    G08096440
  7. Install the key reminder switch in the direction of the arrow.
  8. Install in the reverse order of removal.
