Main Fuse Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the main fuse cover in the direction of the arrow while pressing the tab indicated in the figure.

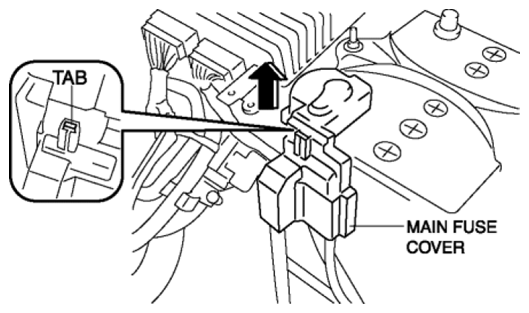

    Fig 1: Identifying Main Fuse Cover Tab
    G08096432
  3. Remove nuts A, B, and C shown in the figure.

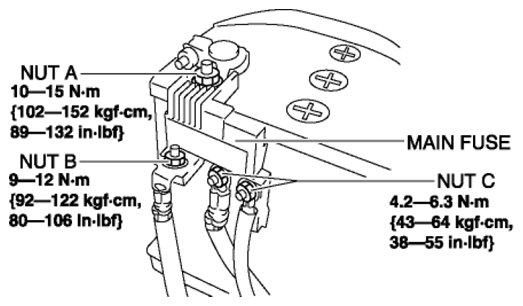

    Fig 2: Main Fuse Nuts A, B, And C With Torque Specifications
    G08096433
  4. Remove the main fuse.
  5. Install in the reverse order of removal.
