Front Power Window Regulator Removal/Installation

  1. To access the glass installation bolt, adjust the position of the front door glass so that the height of the front door glass towards the rear is approx. 100 mm {3.94 in}  .

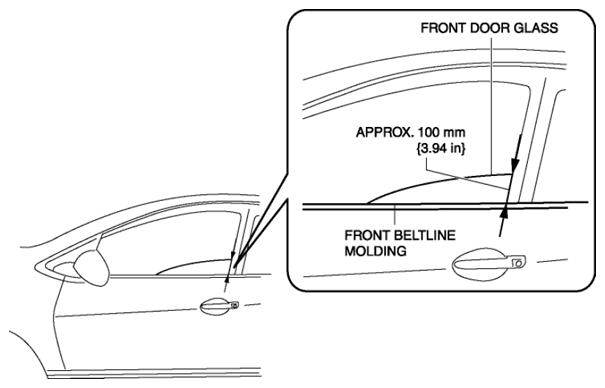

    Fig 1: Positioning Front Door Glass To Adjustment Height
    G08107963
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    5. Front power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
  4. Remove the nuts.

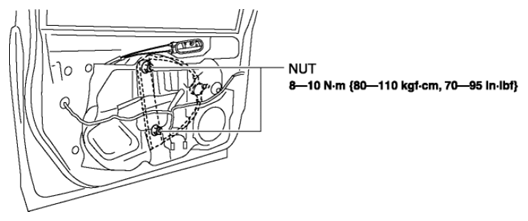

    Fig 2: Front Power Window Regulator Nuts With Torque Specifications
    G08107964
  5. Insert a hand through the front door speaker installation hole and rotate the drum housing in the direction of the arrow shown in the figure to detach the tabs from the front door module panel.

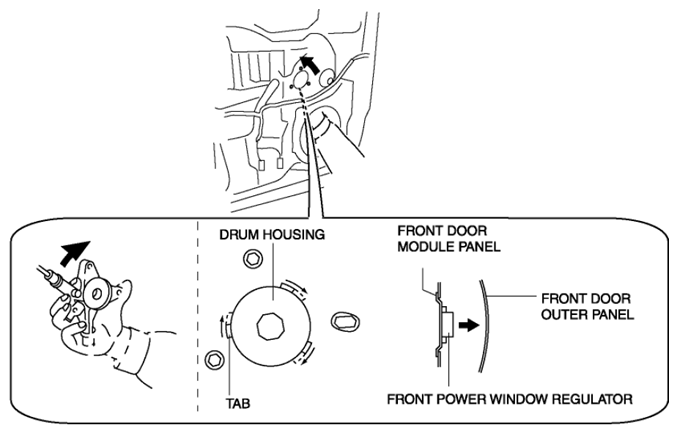

    Fig 3: Detaching Tabs From Front Door Module Panel
    G08107965
  6. Remove the front power window regulator from the speaker installation hole.

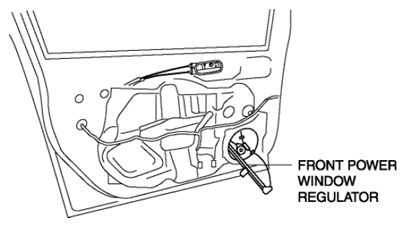

    Fig 4: Front Power Window Regulator And Speaker Hole
    G08107966
  7. Install in the reverse order of removal.
    CAUTION:
    • When installing, do not allow the cable to come out from the drum housing.
