Power Window Main Switch Disassembly/Assembly
- Disconnect the negative battery cable.
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
- Remove the driver's side front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Remove the power window main switch. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)

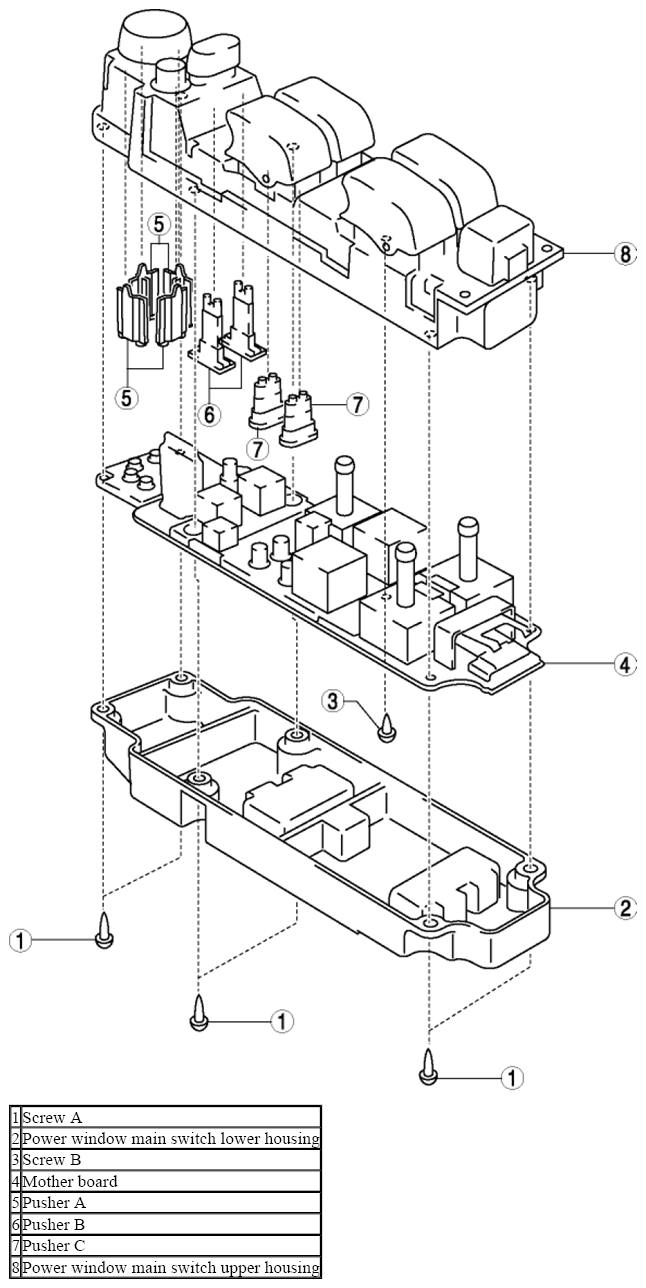

- Disassemble in the order shown in the figure.
- Assemble in the reverse order of disassembly.
