Power Window Main Switch Inspection: Notes
- Switch the ignition to ON.
- Verify that the door glass (driver's side) can be operated for approx. 43 s
after the ignition switched to off.
- If the door glass (driver's side) cannot be operated for approx. 43 s
after the after the ignition switched to off, of if the door glass (driver's side) can still be operated after approx. 43 s
, replace the power window main switch.
- Disconnect the negative battery cable.
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION
.)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION
.)
- Remove the switch panel. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY
.)
- Connect the power window main switch connector.
- Connect the negative battery cable.

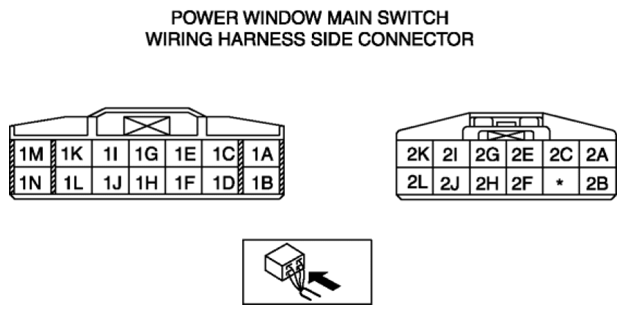

- Measure the voltage at each terminal.
- If the voltage is not as specified in the terminal voltage table, inspect the parts under Inspection item(s) and related wiring harnesses.
- If the system does not work normally even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch.
