| DETECTION CONDITION |

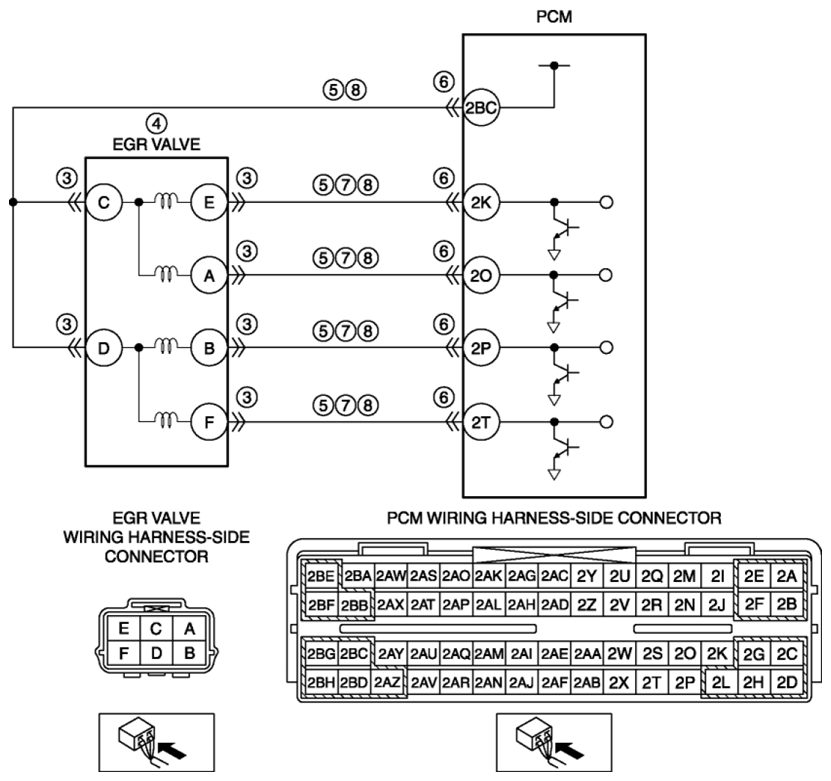

- The PCM monitors the input voltage and current from the EGR valve. If the voltage or current remains low or high, the PCM determines that there is the EGR valve control circuit problem.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
- PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
