DTC P0564:00: Notes

DTC P0564:00	Cruise control switch circuit malfunction
DETECTION CONDITION	The PCM monitors the cruise control switch signal. If the PCM detects that any one of following switches (Cruise OFF, CANCEL, SET -, SET +, RESUME, Cruise ON) remains on for 2 min , the PCM determines that the cruise control switch circuit has a malfunction. Diagnostic support note This is a continuous monitor (other). The MIL does not illuminate. FREEZE FRAME DATA (Mode 2)/Snapshot data is not available. The DTC is stored in the PCM memory.

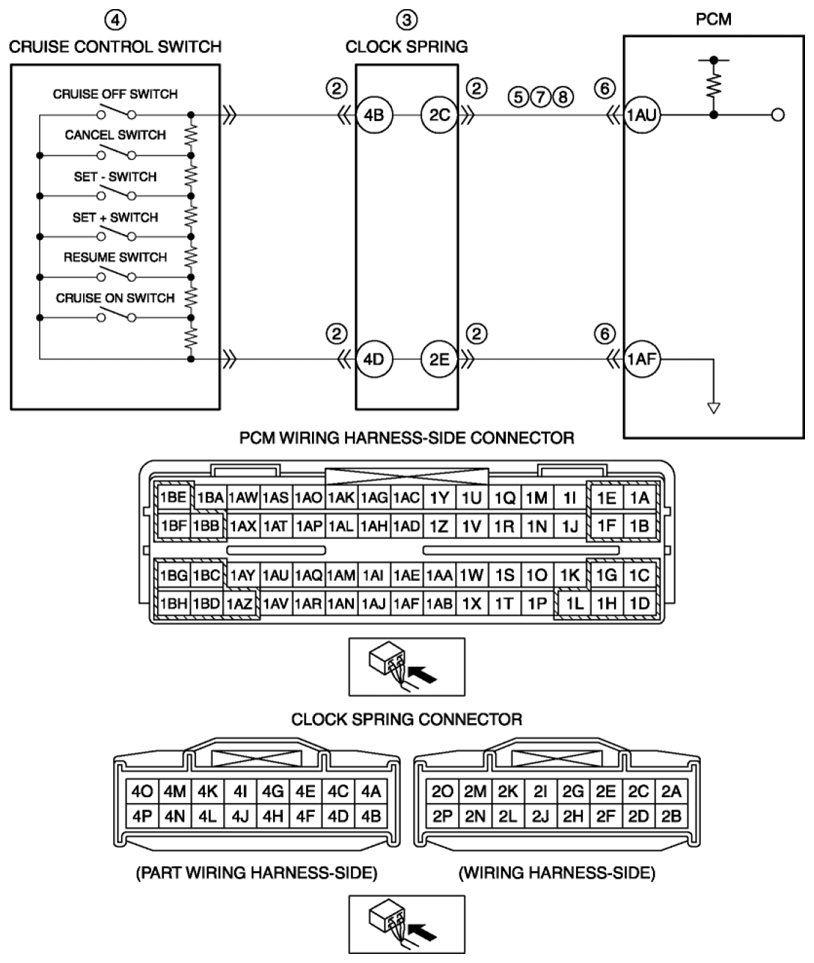

POSSIBLE CAUSE	Clock spring connector or terminals malfunction Clock spring malfunction Cruise control switch malfunction Short to ground in wiring harness between clock spring terminal 2C and PCM terminal 1AU PCM connector or terminals malfunction Short to power supply in wiring harness between clock spring terminal 2C and PCM terminal 1AU Open circuit in wiring harness between clock spring terminal 2C and PCM terminal 1AU PCM malfunction
