Quick Diagnostic Chart

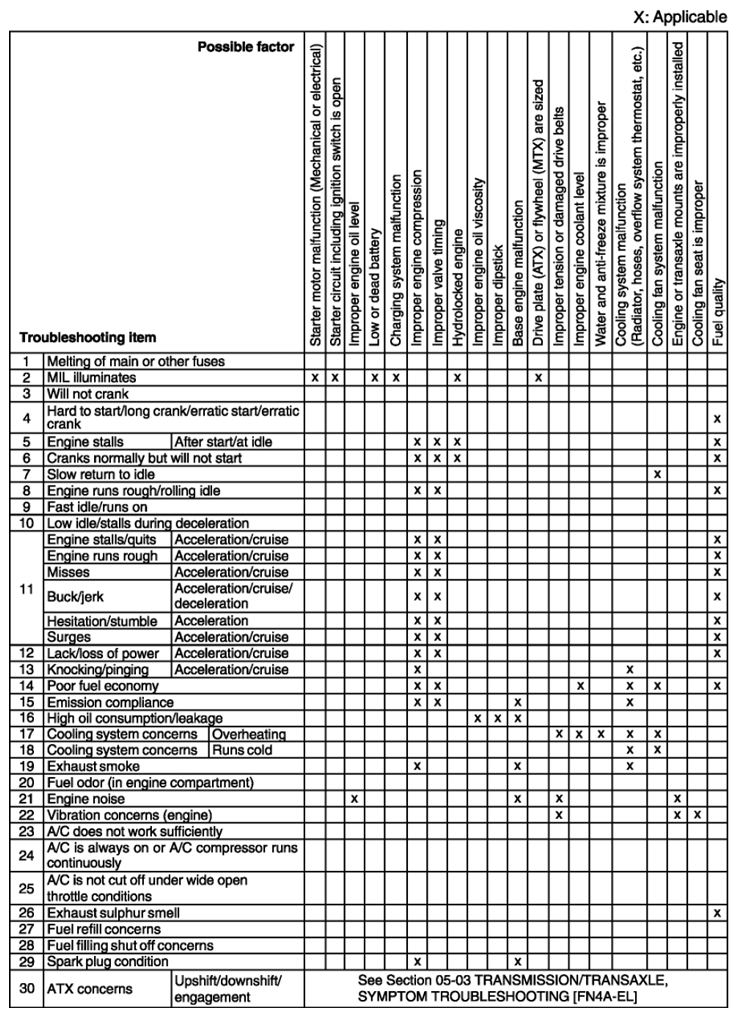

Fig 1: Quick Diagnostic Chart - MZR 1.5 (1 Of 4)
G08107104Courtesy of MAZDA MOTORS CORP.

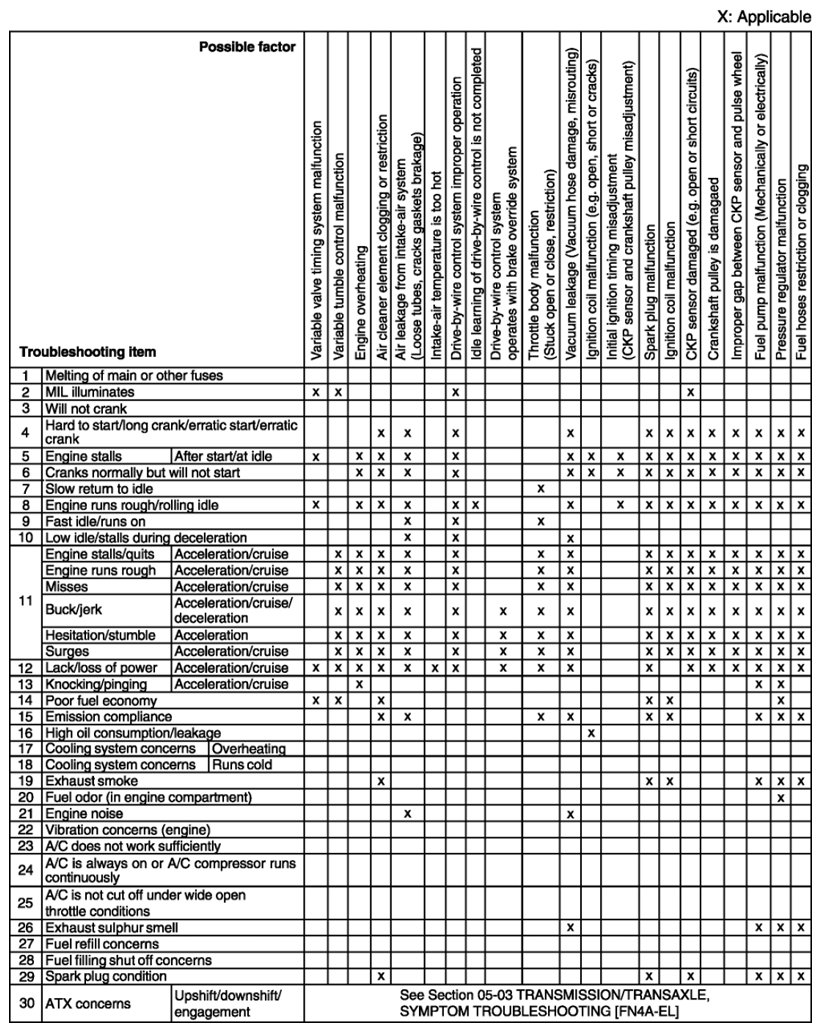

Fig 2: Quick Diagnostic Chart - MZR 1.5 (2 Of 4)
G08107105Courtesy of MAZDA MOTORS CORP.

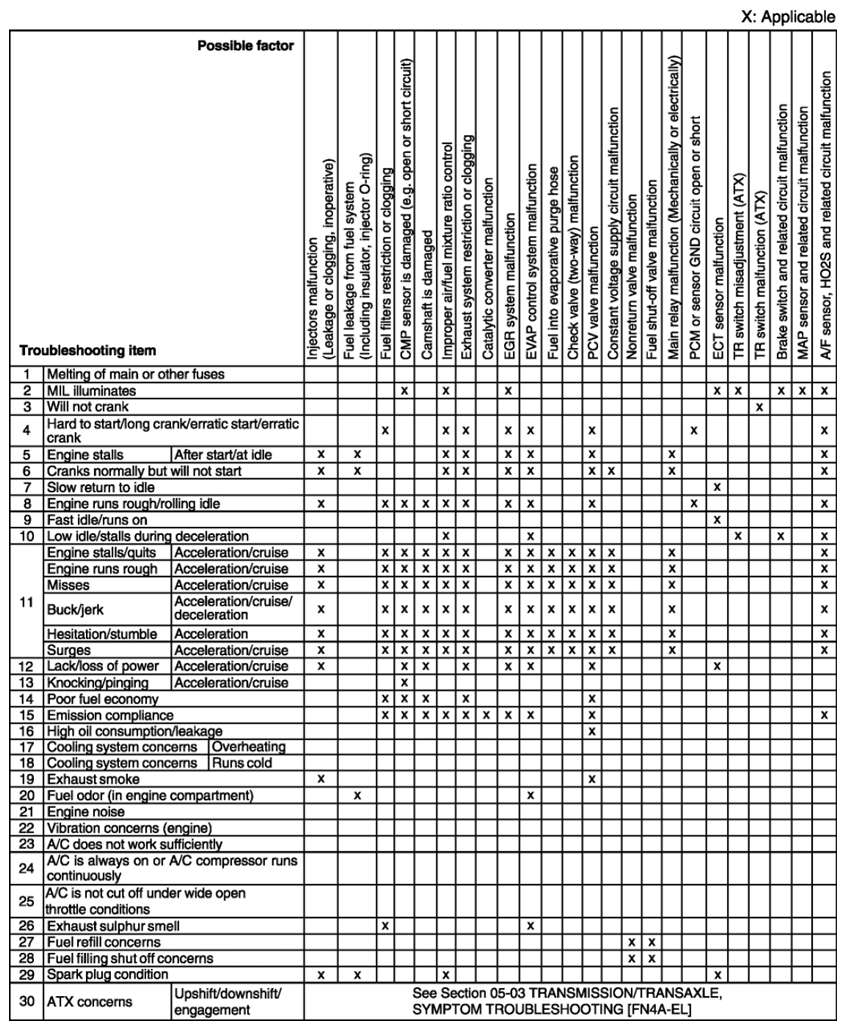

Fig 3: Quick Diagnostic Chart - MZR 1.5 (3 Of 4)
G08107106Courtesy of MAZDA MOTORS CORP.

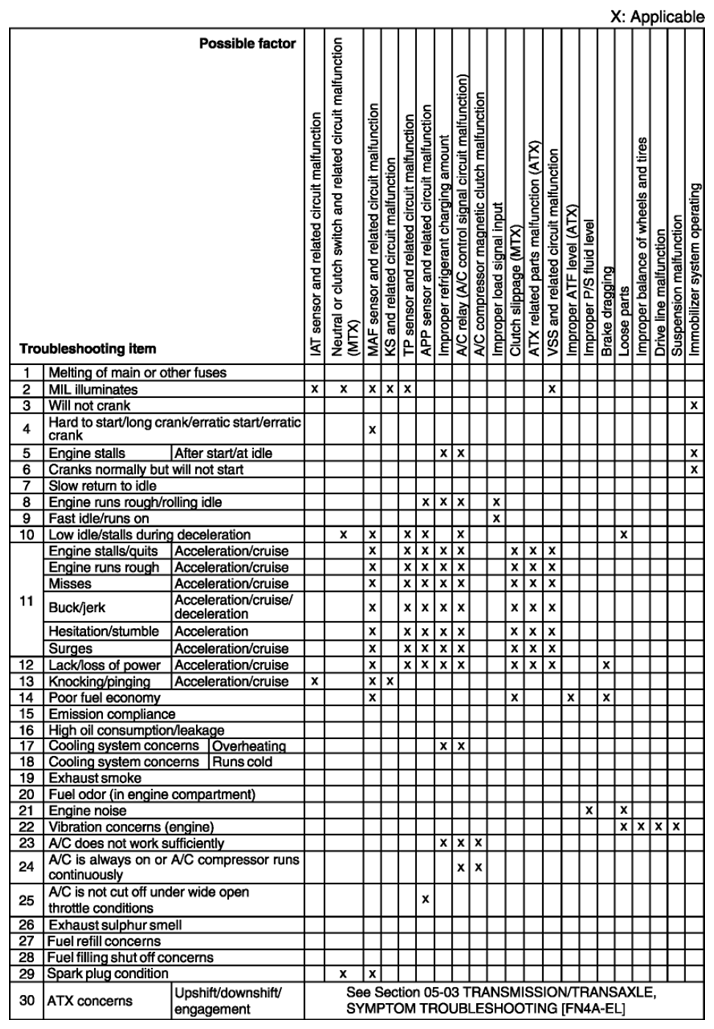

Fig 4: Quick Diagnostic Chart - MZR 1.5 (4 Of 4)
G08107107Courtesy of MAZDA MOTORS CORP.
