Selector Cable and Interlock Cable Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the clip, and then disconnect the selector cable end from the manual shaft lever.

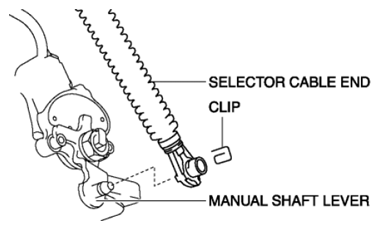

    Fig 1: Identifying Clip, Selector Cable End And Manual Shaft Lever
    G08095936
  3. Disconnect the selector cable from the upper transaxle bracket.
  4. Remove the insulator No.1 of the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.5] .)
  5. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  6. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  7. Remove the front console component. (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION .)
  8. Remove in the order indicated in the figure.
  9. Install in the reverse order of removal.

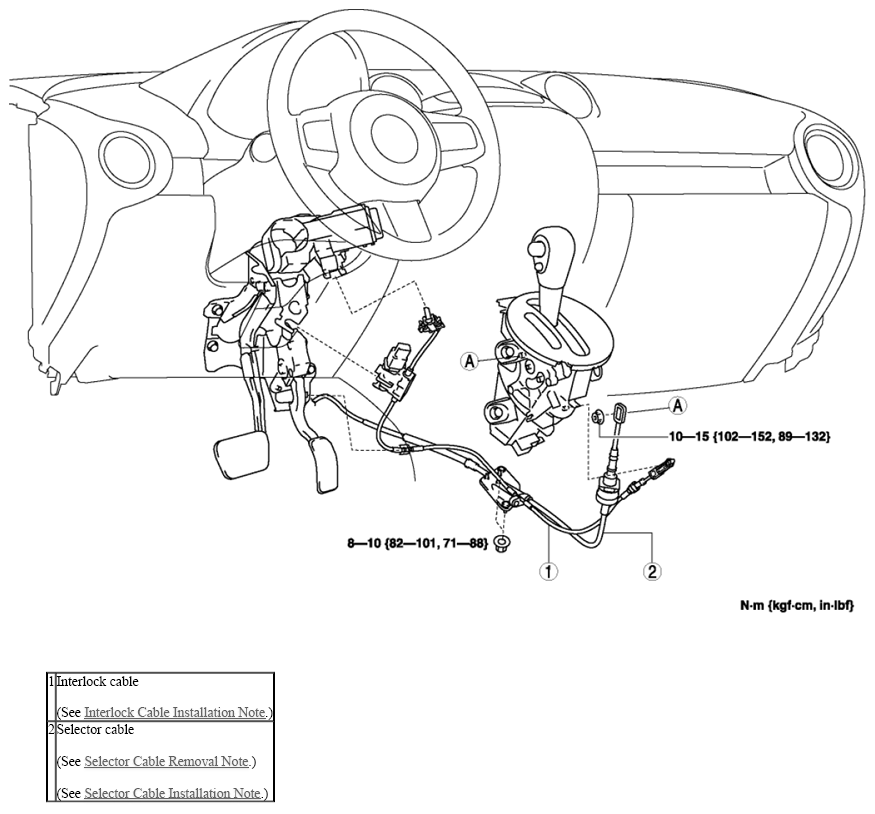

    Fig 2: Automatic Transaxle Shift Mechanism Replacement Components With Torque Specifications
    G08095937
