Relay Location

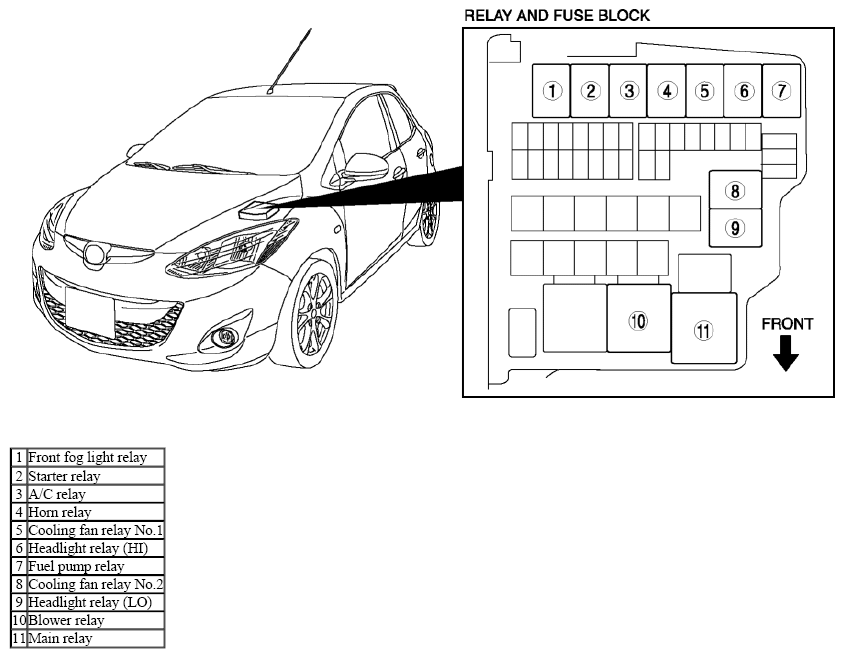

Fig 1: Identifying Engine Room Fuse/Relay Block Relay Locations

G08096444

ENGINE ROOM FUSE/RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Front Fog Light Relay
Starter Relay
A/C Relay
Horn Relay
Cooling Fan Relay No. 1
Headlight Relay (Hi)
Fuel Pump Relay
Cooling Fan Relay No. 2
Headlight Relay (Lo)
Blower Relay
Main Relay
