2 Touring, 1.5L Eng VIN Z, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System [MZR 1.5]
>>
Pcm Inspection
>>
Inspection Using An Oscilloscope (Waveform Reference)
>>
Generator field coil control signal
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Generator field coil control signal

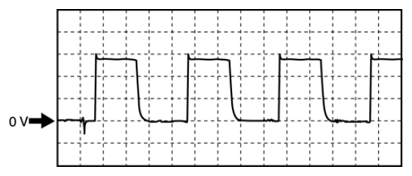

Fig 1: Generator Field Coil Control Signal Waveform
PCM terminals
2AF (+)-Negative battery terminal (-)
Oscilloscope setting
0.5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
idle (after warm up)
