Theft-Deterrent System Reading Freeze Frame Data

THEFT-DETERRENT SYSTEM READING FREEZE FRAME DATA

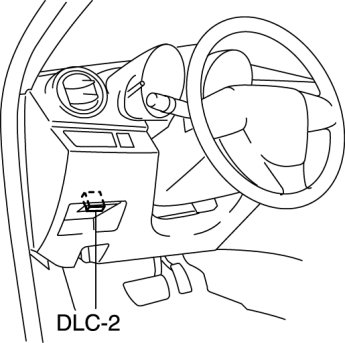

1. Connect the M-MDS (IDS) to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the IDS.

- Select "Body".
- Select "Burglar Service Functions".

3. Then, select the following item from the screen menu.

- Select "Read FFD".

4. Read the record according to the directions on the screen.
