CONDENSER REMOVAL/INSTALLATION

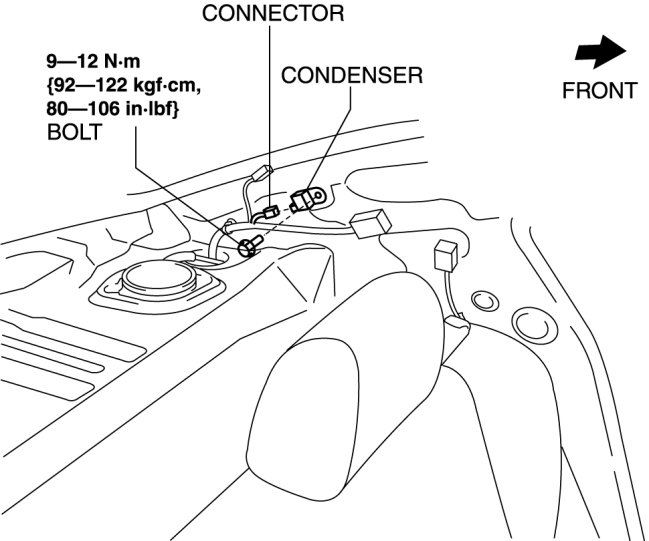

4SD

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Rear seat cushion Rear Seat Cushion Removal/Installation

b. Rear scuff plate (LH) Rear Scuff Plate Removal/Installation

c. Tire house trim (LH) Tire House Trim Removal/Installation

d. C-pillar trim (LH) C-Pillar Trim Removal/Installation

3. Disconnect the connector.






4. Remove the bolt.

5. Remove the condenser.

6. Install in the reverse order of removal.

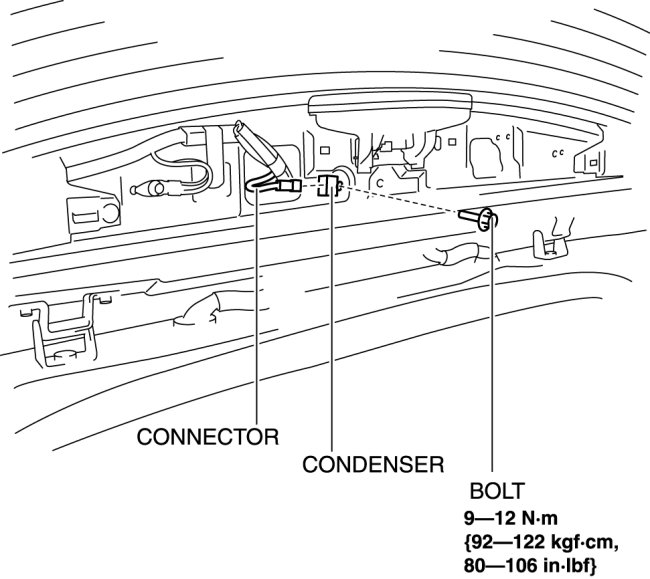

5HB

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the liftgate upper trim.

3. Disconnect the connector.






4. Remove the bolt.

5. Remove the condenser.

6. Install in the reverse order of removal.
