Seat Temperature Switch: Service and Repair





SEAT WARMER SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement Removal and Replacement Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

3. Remove the shift panel. Shift Panel Removal/Installation

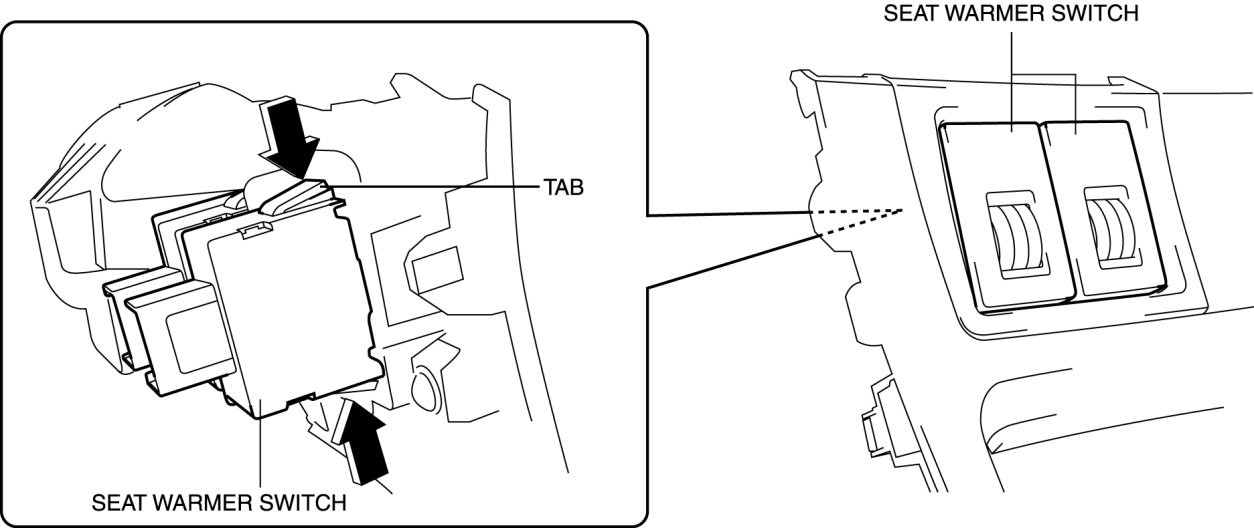

4. Squeeze the tabs of seat warmer switch and pull it outward to remove it.






5. Remove the seat warmer switch.

6. Install in the reverse order of removal.
