Seat Temperature Switch: Testing and Inspection

SEAT WARMER SWITCH INSPECTION

1. Remove the battery cover. Removal and Replacement Removal and Replacement Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

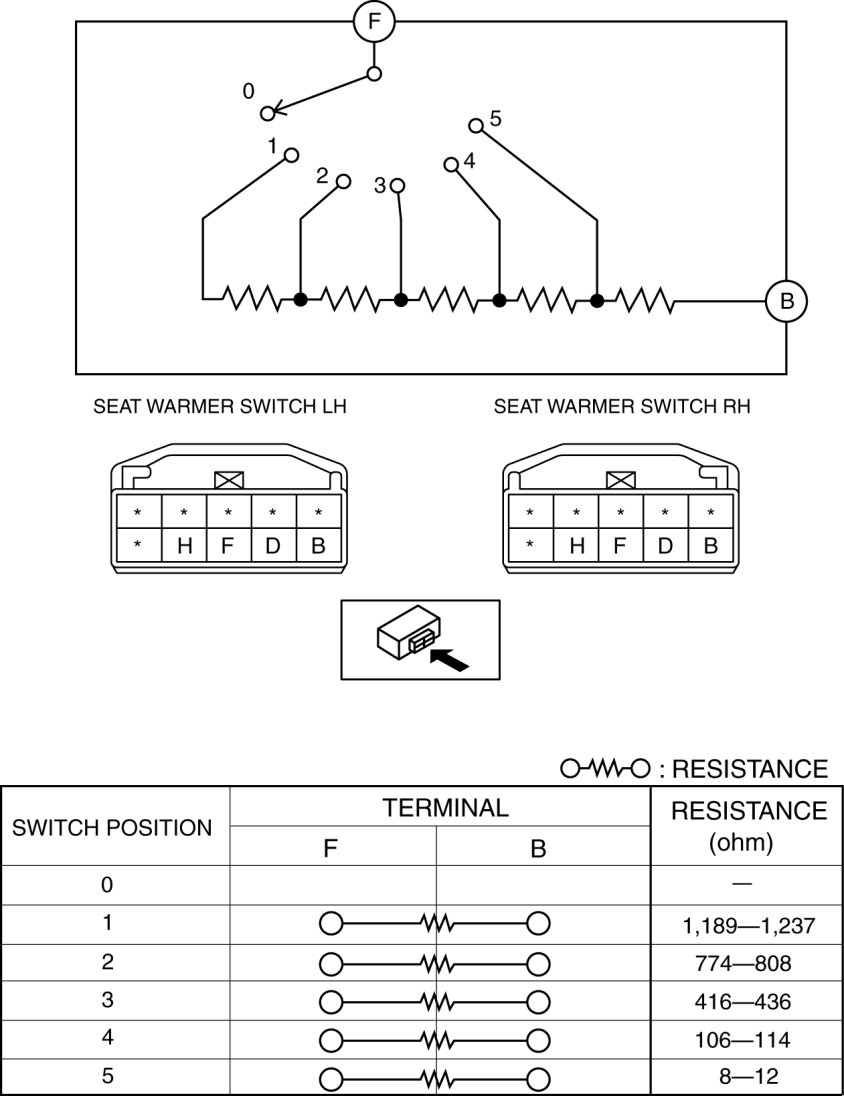

3. Inspect for resistance and continuity between the seat warmer switch terminals using a tester.






- If not as specified, replace the seat warmer switch.
