Electrical Wiring Schematic (With Advanced Keyless Entry and Push Button Start System)

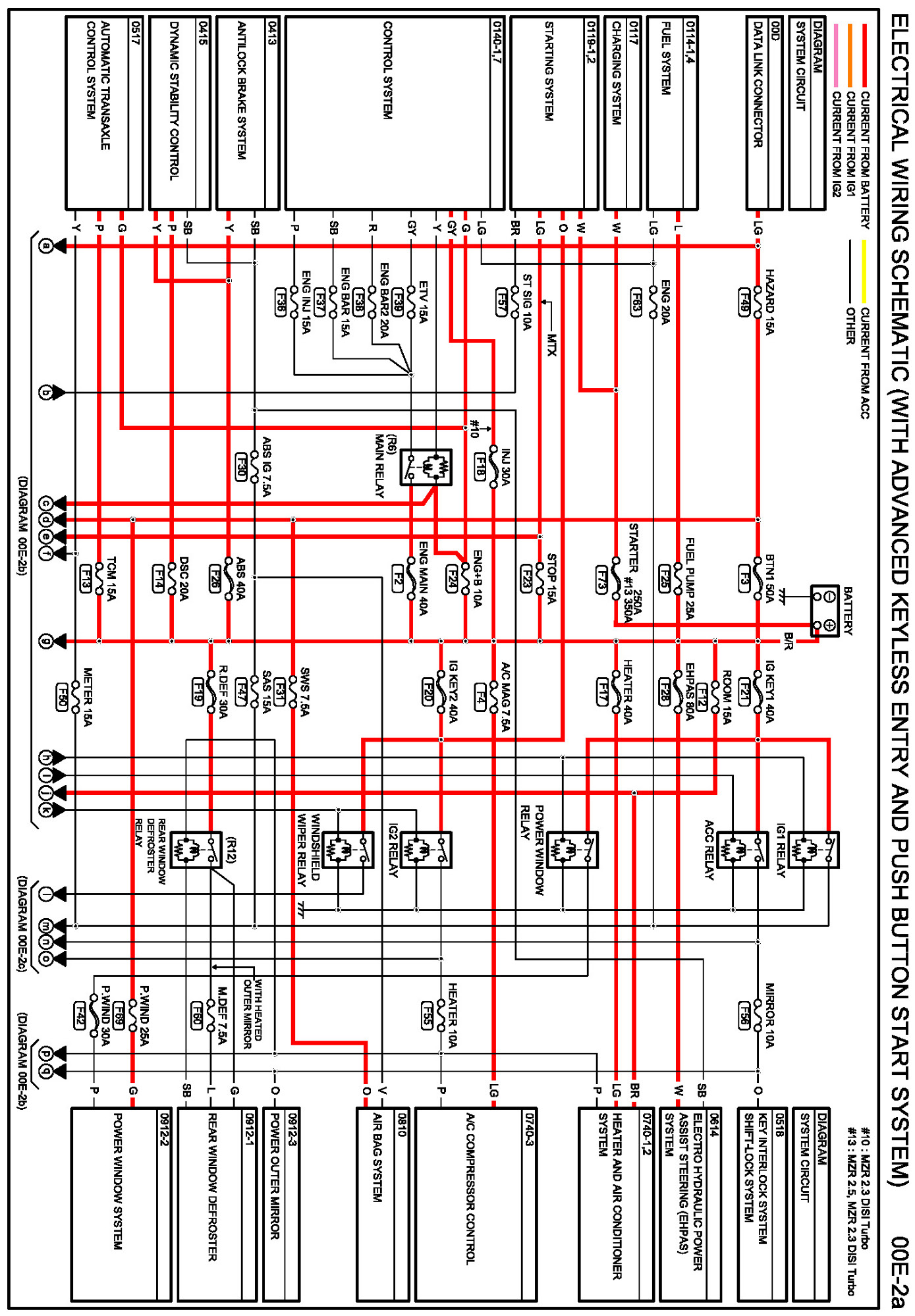

Diagram 00E-2a:

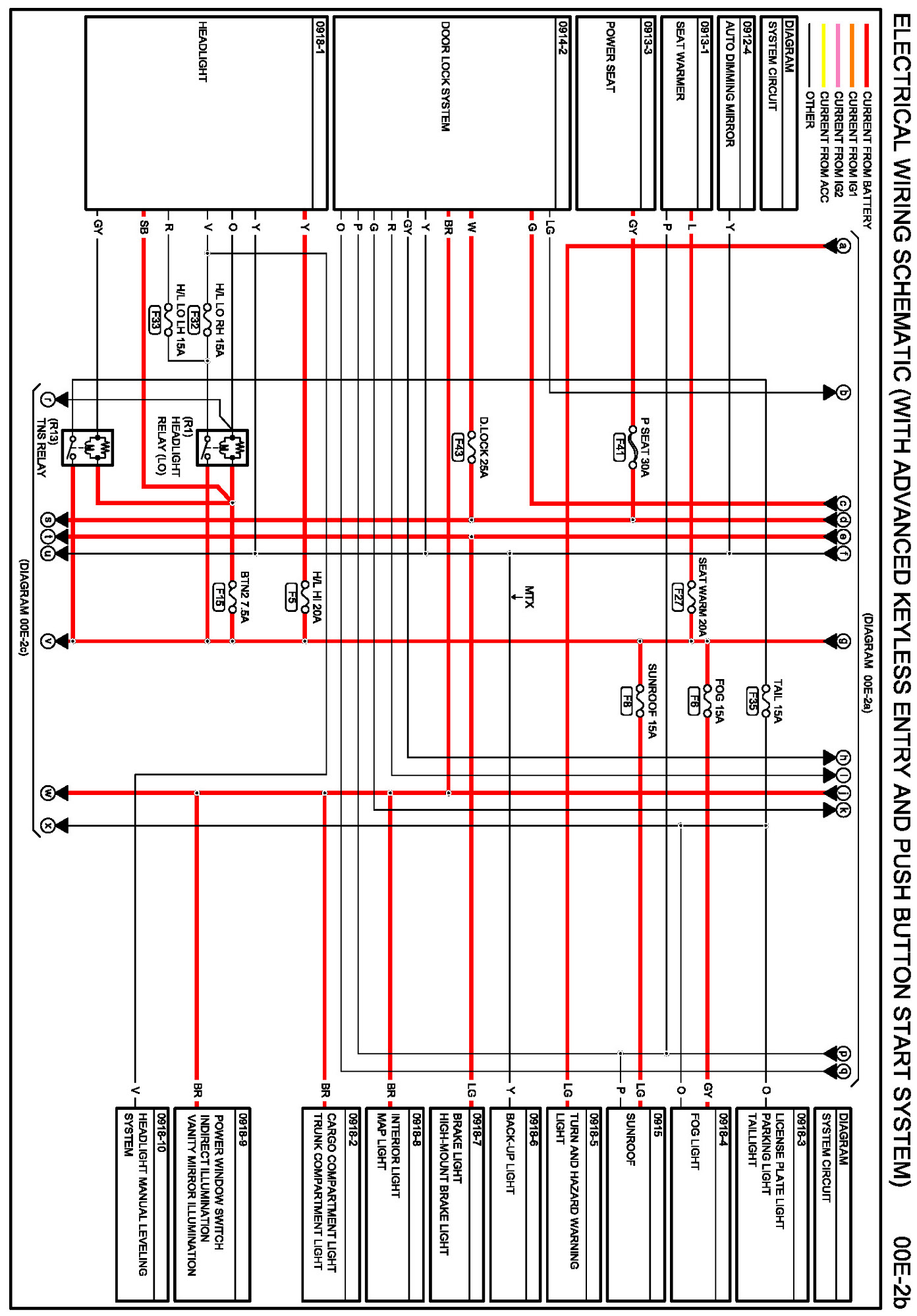

Diagram 00E-2b:

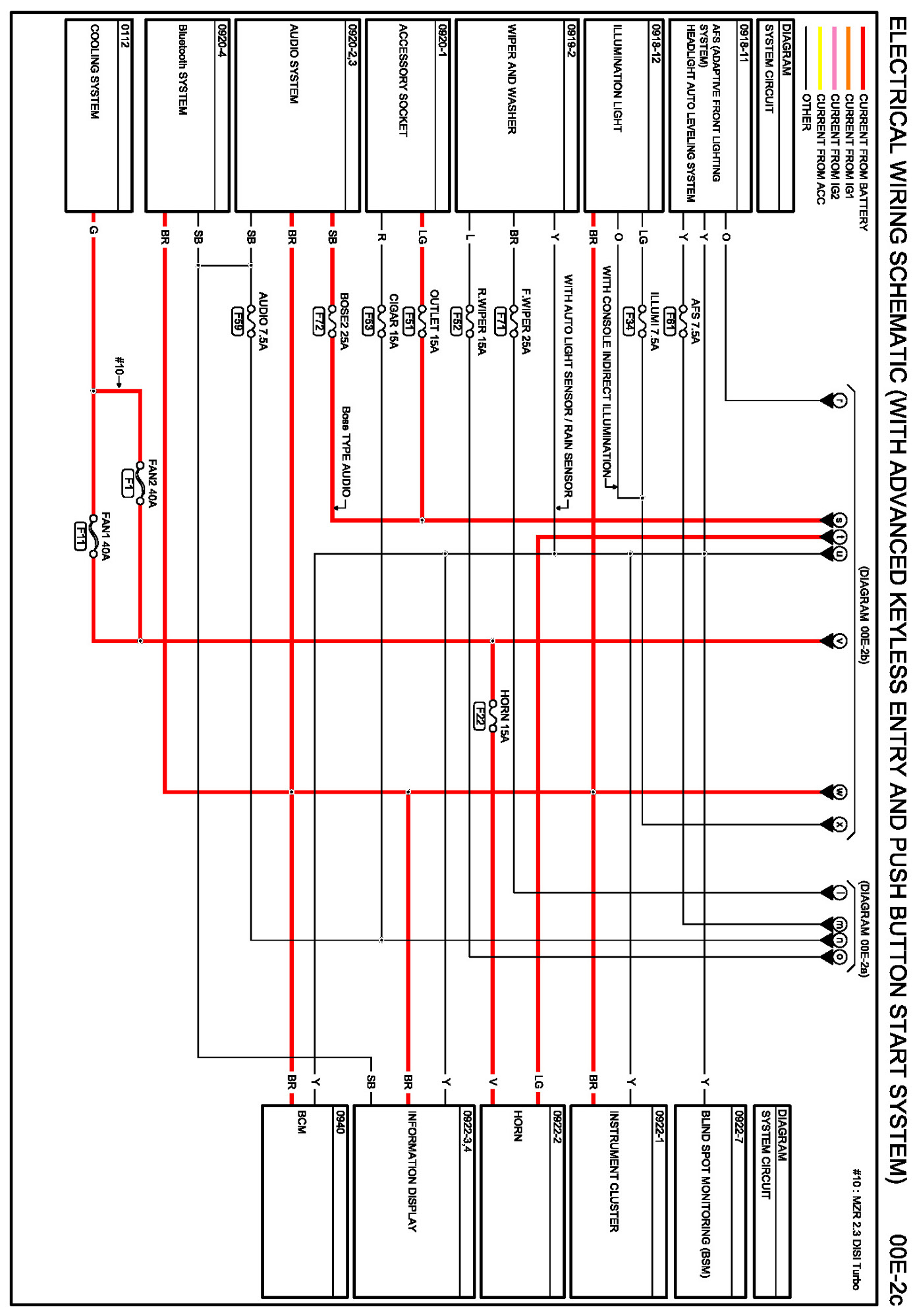

Diagram 00E-2c:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
