Cargo Lamp: Testing and Inspection

CARGO COMPARTMENT LIGHT INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the cargo compartment light. Service and Repair

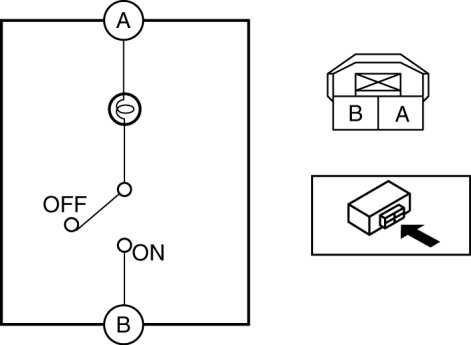

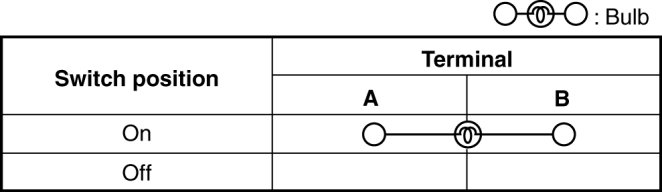

3. Verify that the continuity between the cargo compartment light terminals is as indicated in the table.






- If not as indicated in the table, inspect the bulb. If there is no malfunction, replace the cargo compartment light.
