Headlamp Alignment Switch: Testing and Inspection

HEADLIGHT LEVELING SWITCH INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the headlight leveling switch. Service and Repair

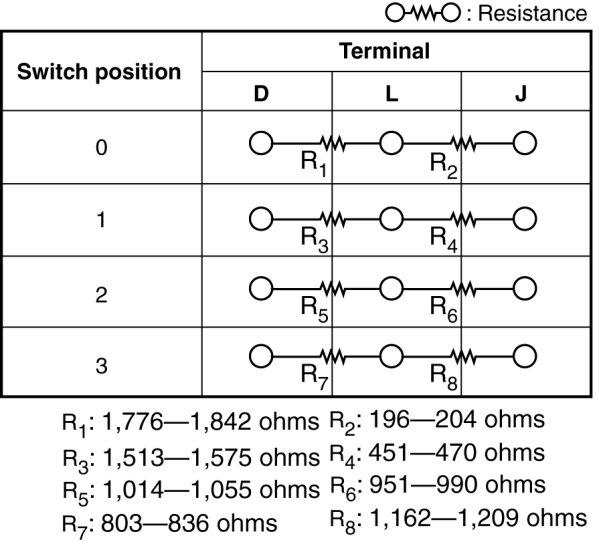

3. Verify that the resistance and continuity between the headlight leveling switch terminals is as indicated in the table.






- If not as indicated in the table, or if the resistance is not within the specification, replace the headlight leveling switch.

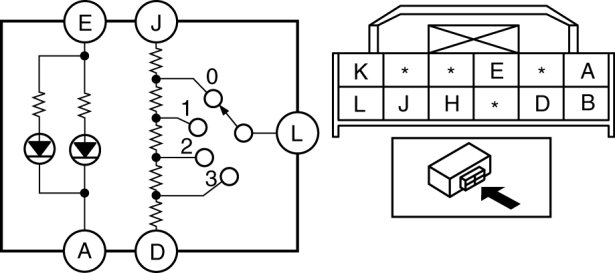

4. Apply battery voltage to headlight leveling switch terminal E, and connect terminal A to ground.

5. Verify that the LED illuminates.

- If there is any malfunction, replace the headlight leveling switch.
