Horn: Service and Repair

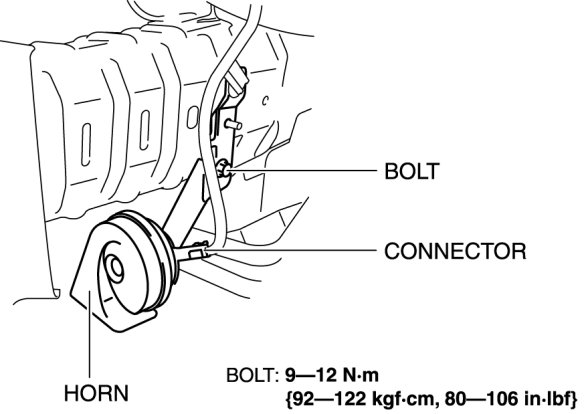

HORN REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the front bumper. Front Bumper Removal/Installation

3. Disconnect the connector.






4. Remove the bolt.

5. Remove the horn.

6. Install in the reverse order of removal.
