Map Light Bulb Removal/Installation

MAP LIGHT BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

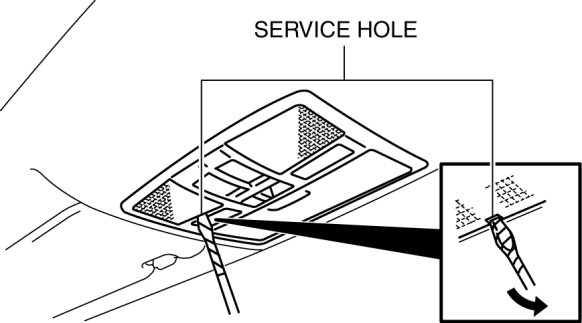

2. Insert a tape-wrapped fastener remover into the service hole and pry with the screwdriver in the direction shown by the arrow to remove the lens.

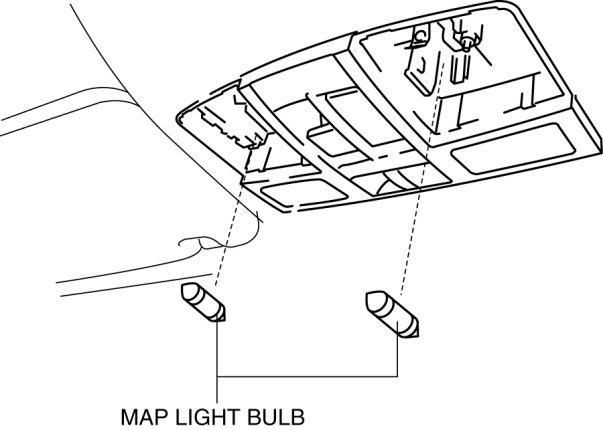

3. Remove the map light bulb.






4. Install in the reverse order of removal.
