Turn Signal Switch: Testing and Inspection

LIGHT SWITCH INSPECTION

Vehicles Without Auto Light System

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the column cover. Service and Repair

3. Remove the light switch. Light Switch Removal/Installation

4. Verify that the continuity between the light switch terminals is as indicated in the table.

- If not as indicated in the table, replace the light switch.

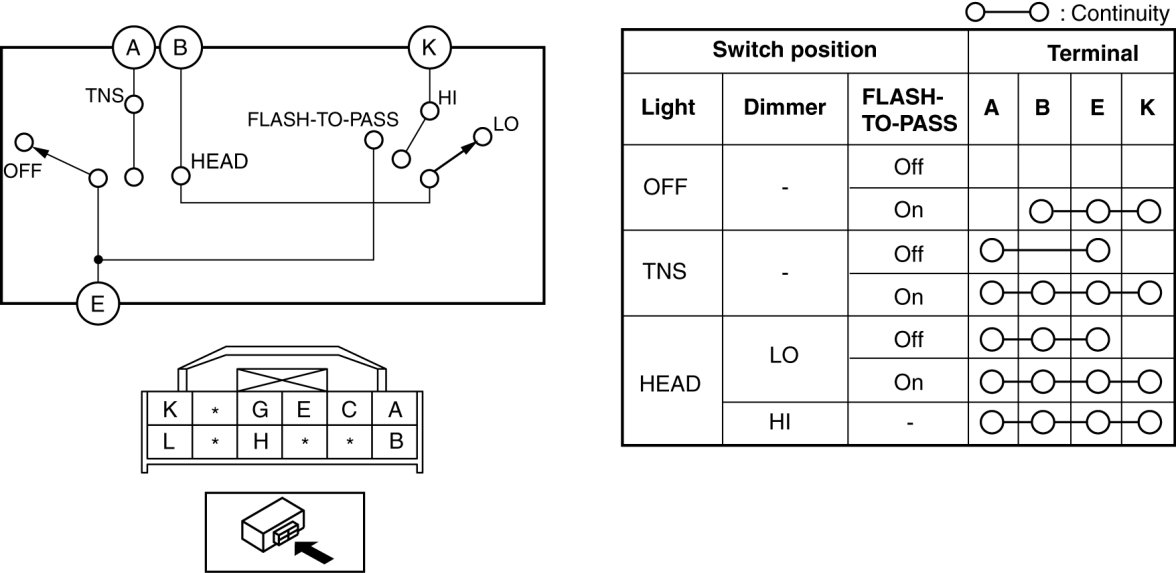

Light Switch

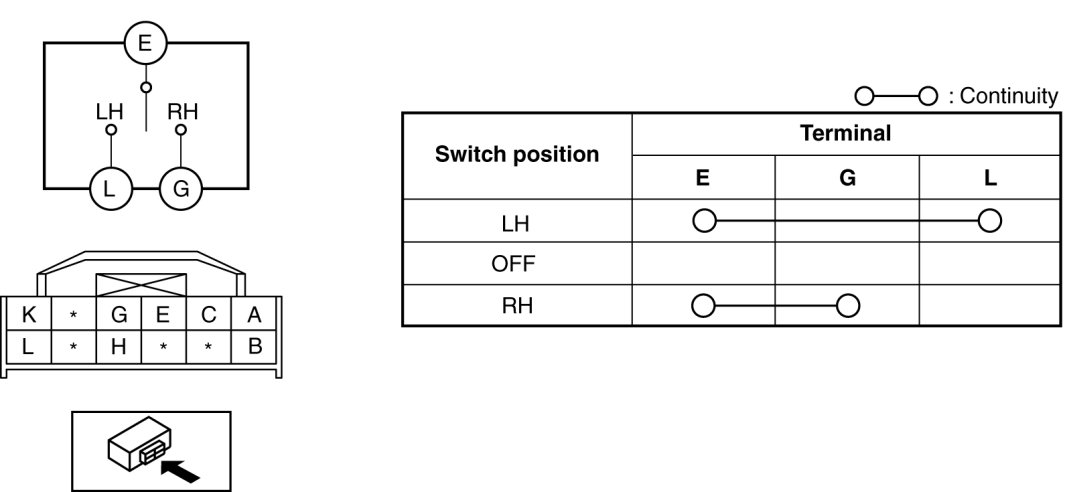

Turn Switch






Vehicles With Auto Light System

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the column cover. Service and Repair

3. Remove the light switch. Light Switch Removal/Installation

4. Verify that the continuity between the light switch terminals is as indicated in the table.

- If not as indicated in the table, replace the light switch.

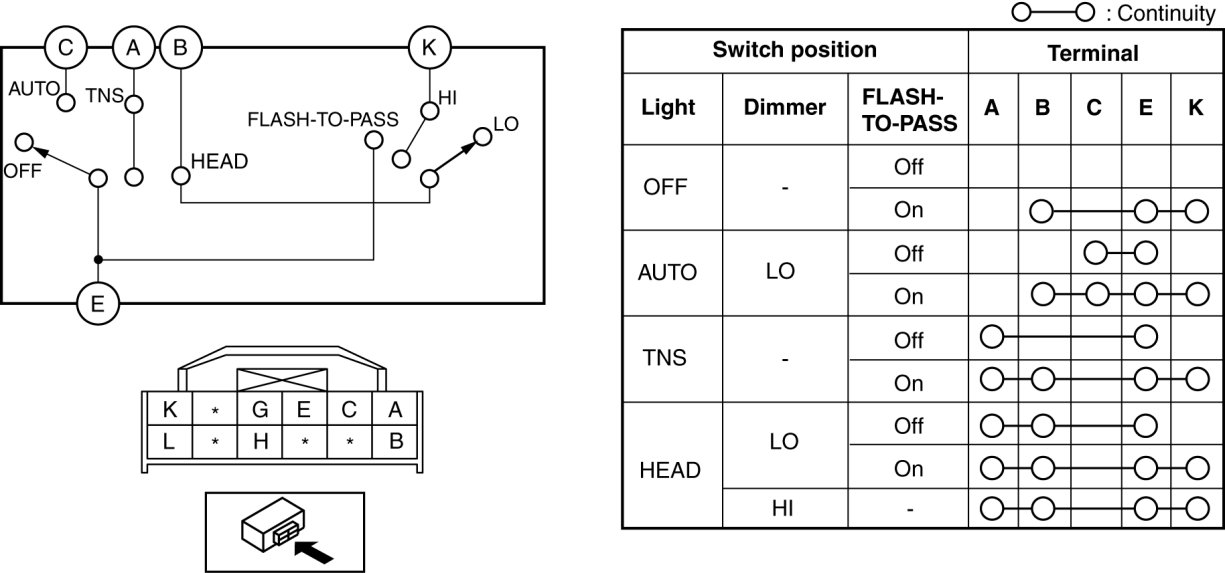

Light Switch





Turn Switch
