Troubleshooting Procedure

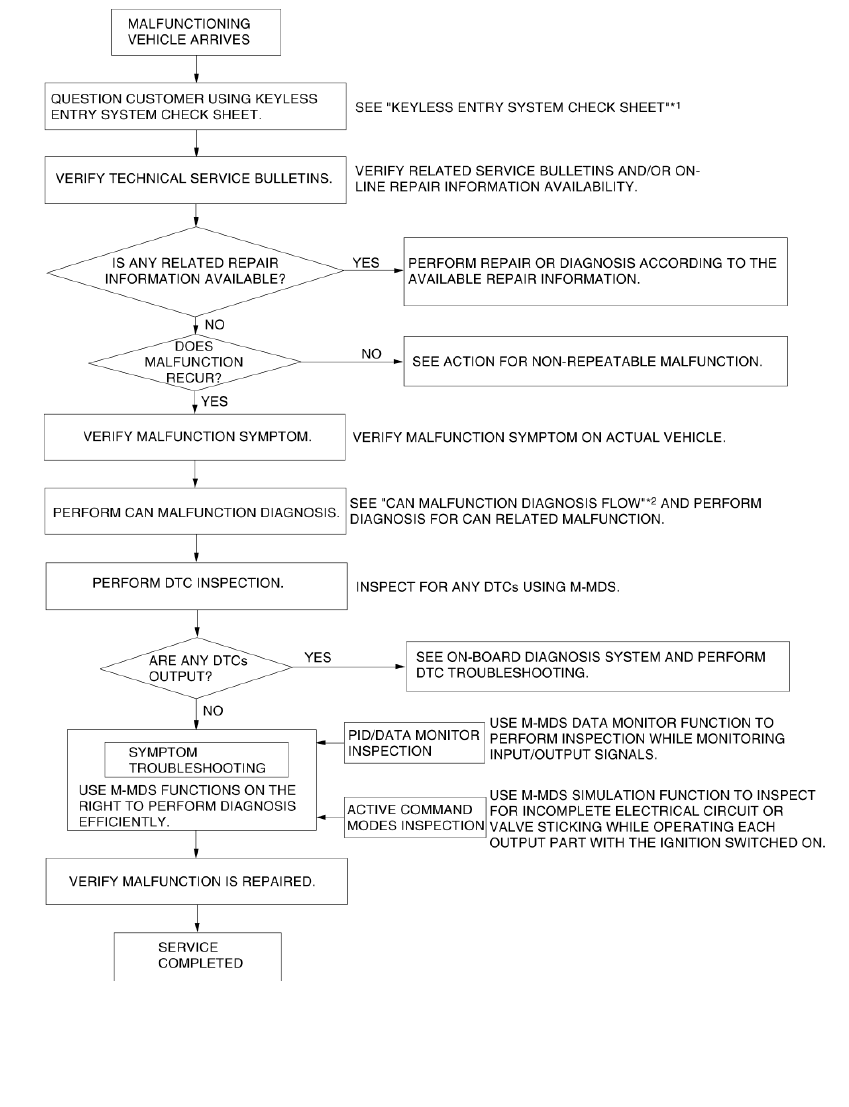

Fig 1: Troubleshooting Procedure Chart - Foreword (Advanced Keyless Entry And Push Button Start System)
G08158410

*1 KEYLESS ENTRY SYSTEM CHECK SHEET [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

*2 CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [MULTIPLEX COMMUNICATION SYSTEM]
