Rear Power Window Regulator Removal/Installation

  1. Fully lower the rear door glass.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the service hole cover.

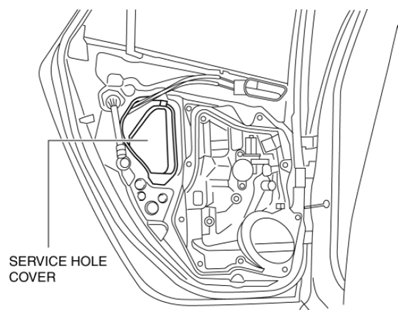

    Fig 1: Service Hole Cover
    G08158573
  5. Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
  6. Remove the glass guide. (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
  7. Remove the rear power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
  8. Remove the rear door glass. (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
  9. Remove the nuts.

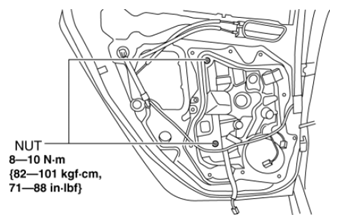

    Fig 2: Rear Door And Nuts With Torque Specification
    G08158574
  10. Insert a hand through the speaker installation hole, rotate the drum housing in the direction shown in the figure to detach the tabs from the rear door module.

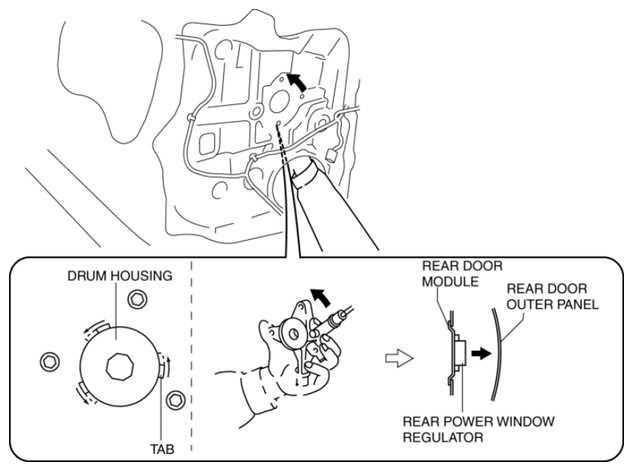

    Fig 3: Inserting Hand Through Speaker Installation Hole
    G08158575
  11. Remove the rear power window regulator through the speaker installation hole.

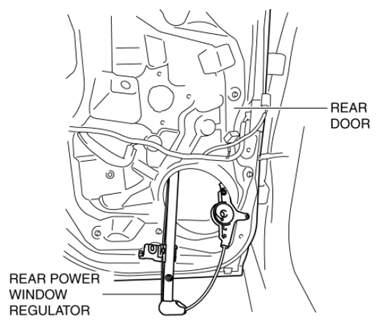

    Fig 4: Rear Power Window Regulator And Speaker Installation Hole
    G08158576
  12. Install in the reverse order of removal.
    • CAUTION: Make sure the cable does not unspool from the drum housing when installing.
