Control System Device And Control Relationship Chart

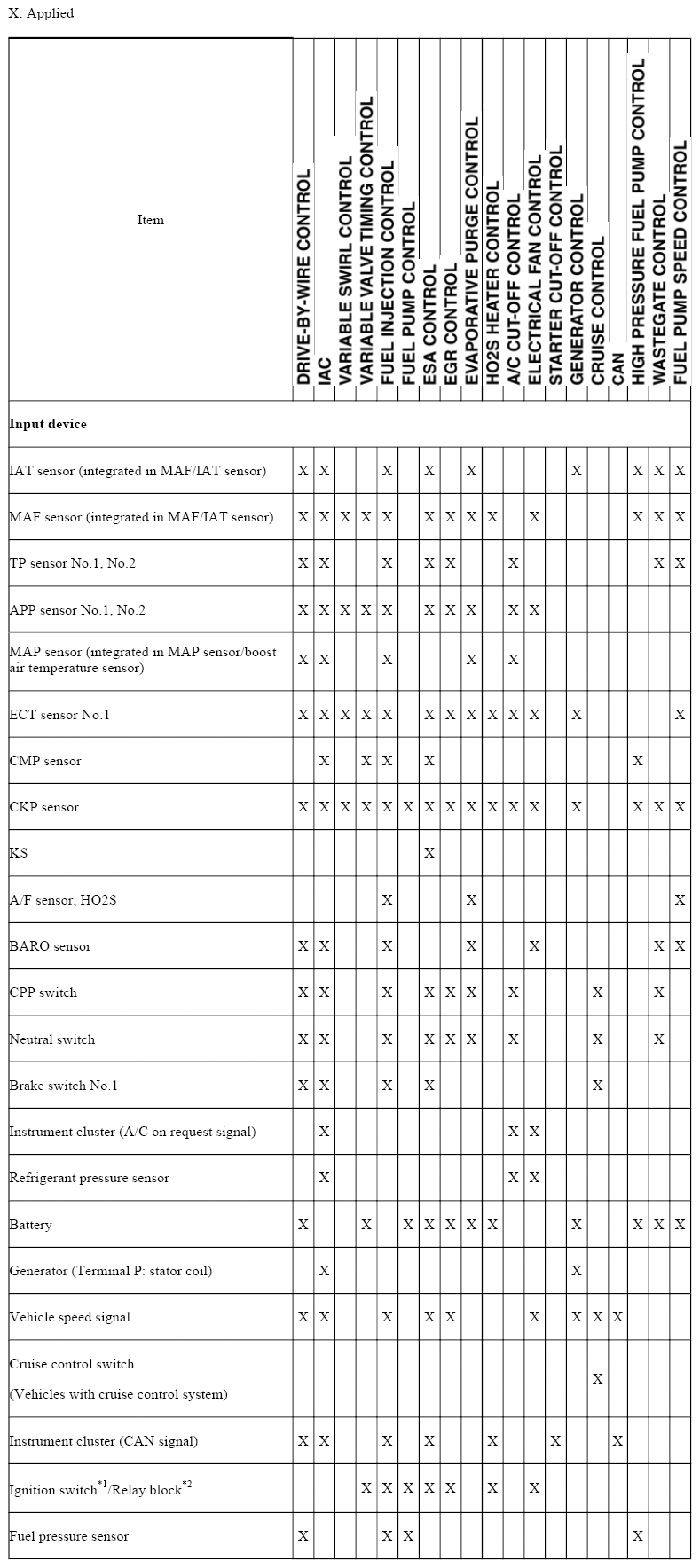

Fig 1: Control System Device And Control Relationship Chart [MZR 2.3 DISI Turbo] (1 Of 2)

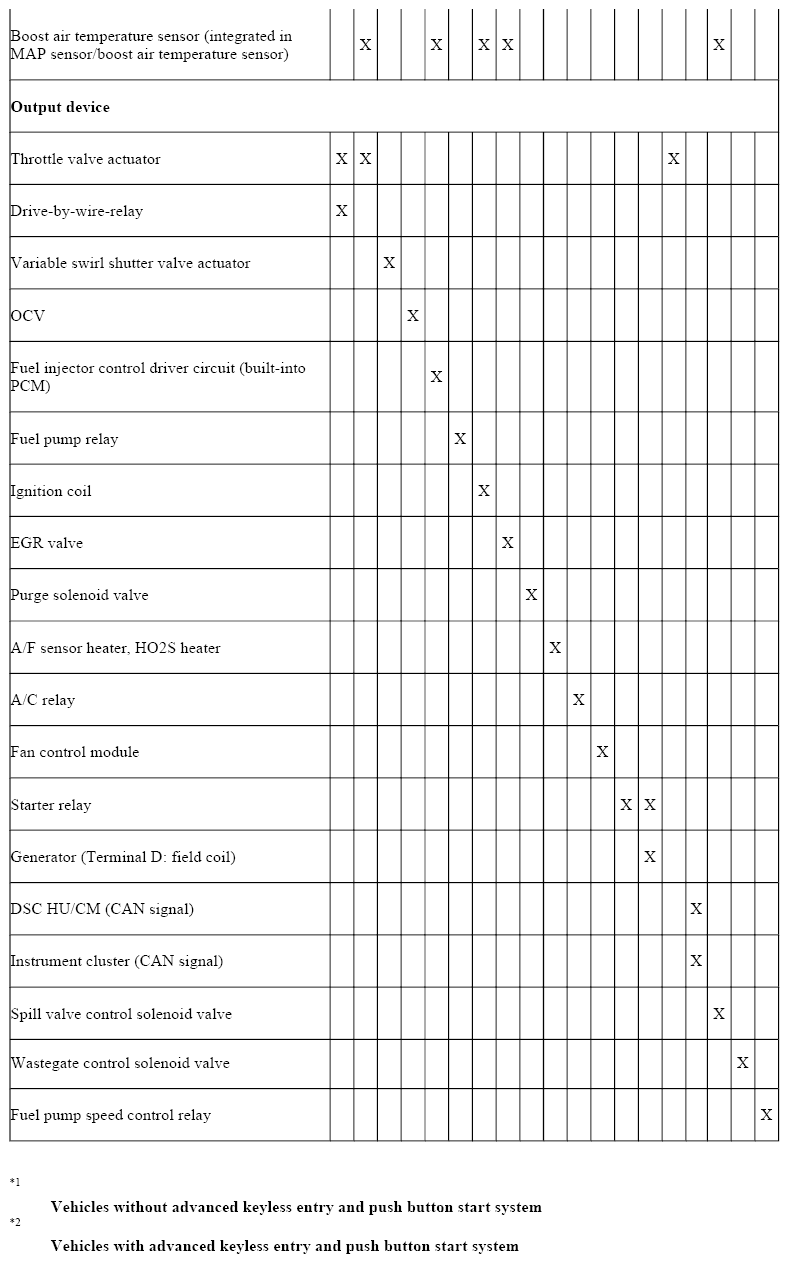

Fig 2: Control System Device And Control Relationship Chart [MZR 2.3 DISI Turbo] (2 Of 2)
