Front Buckle Removal/Installation

  1. Switch the ignition to off.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  4. Remove the bolt.

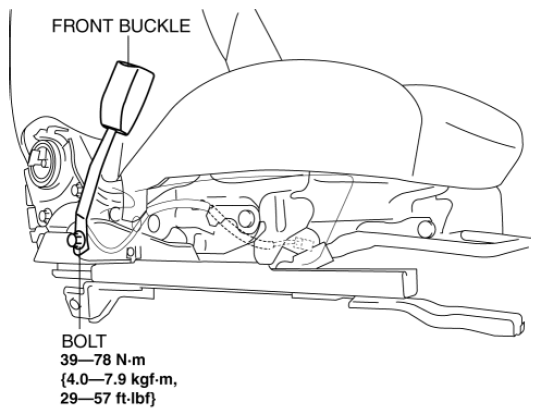

    Fig 1: Front Buckle And Bolt With Torque Specifications
    G08158287
  5. Remove the front buckle.
  6. Install in the reverse order of removal.
