Traction Control Switch: Testing and Inspection

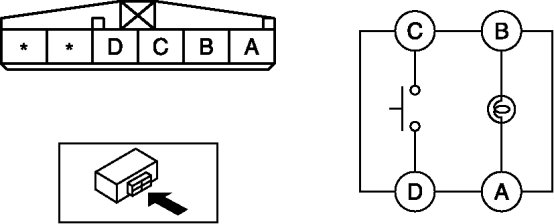

DSC OFF SWITCH INSPECTION

1. Remove the DSC OFF switch. Service and Repair

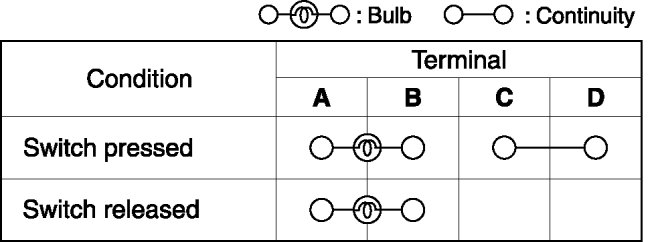

2. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the DSC OFF switch. Service and Repair
