MAP LIGHT INSPECTION

1. Disconnect the negative battery cable.

2. Remove the map light. Map Light Removal/Installation

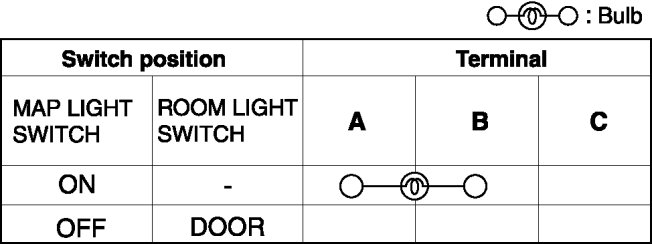

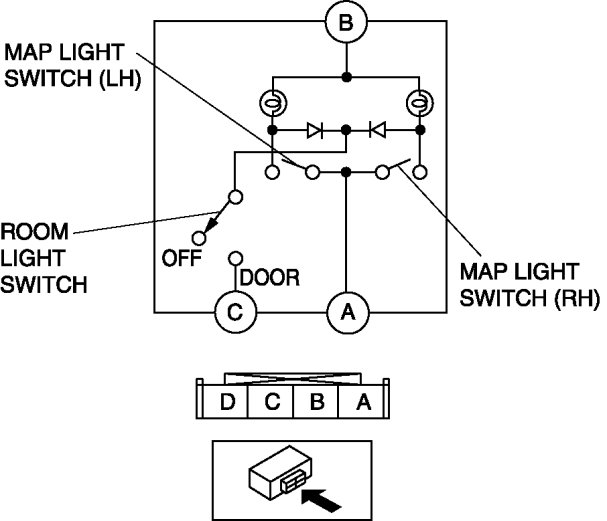

3. Verify that the continuity between the map light terminals is as indicated in the table.











- If not as indicated in the table, replace the map light.

4. Apply battery positive voltage to map light terminal B, and connect terminal C to ground.

5. Switch the interior light switch to the DOOR position and verify that the map light illuminates.

- If the light does not illuminate, replace the map light.
